Signal Waveform

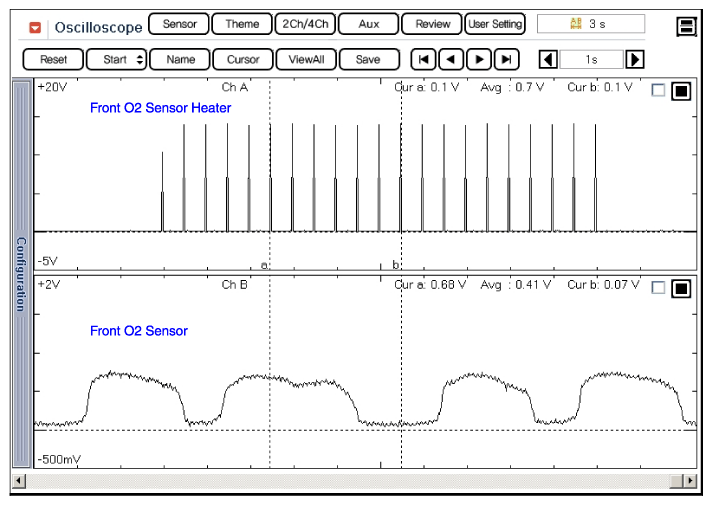

Fig 1: Display - Front O2 Sensor Heater Signal Waveform Screen
G10452237Courtesy of HYUNDAI MOTOR AMERICA

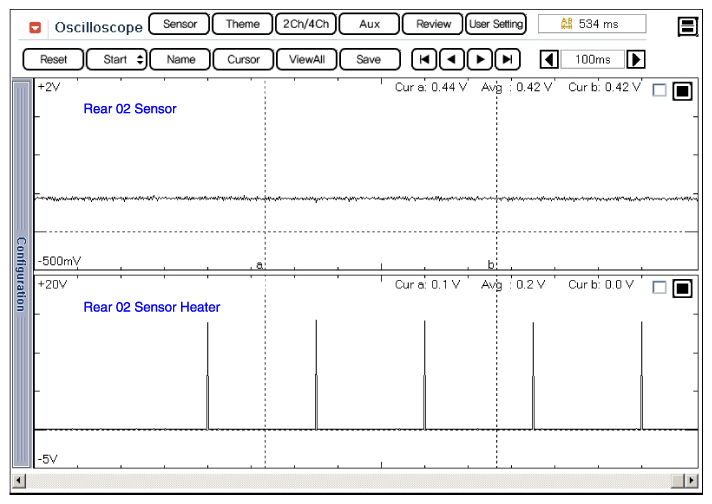

Fig 2: Display - Rear O2 Sensor Heater Signal Waveform Screen
G10452238Courtesy of HYUNDAI MOTOR AMERICA
