Repair procedures: Installation

Install in the reverse order of removal.
Tighten the HECU mounting bolts and nuts to the specified torque.
After installation, bleed the brake system.
(Refer to "BRAKE SYSTEM BLEEDING ")
Connect the GDS to the data link connector located underneath the dash panel.
Make a selection and operate the process according to the instructions on the GDS screen.
Auto Detected Configuration Reset

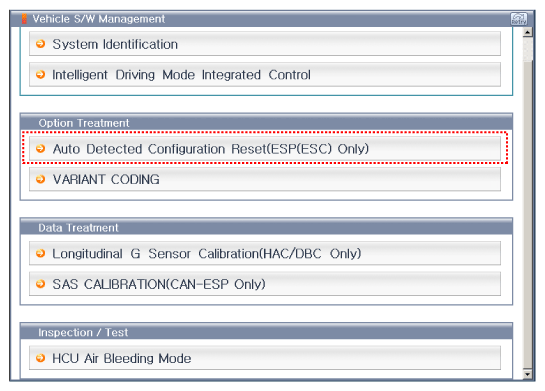

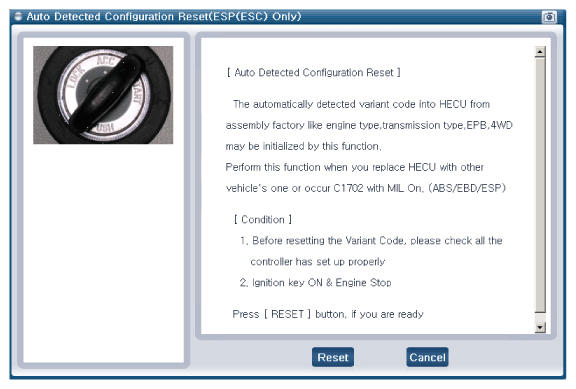

Fig 1: Display - Auto Detected Configuration Reset Screen (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

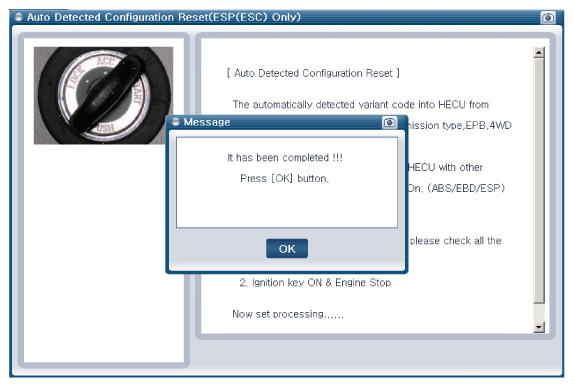

Fig 2: Display - Auto Detected Configuration Reset Screen (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Display - Auto Detected Configuration Reset Screen (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

VARIANT CODING

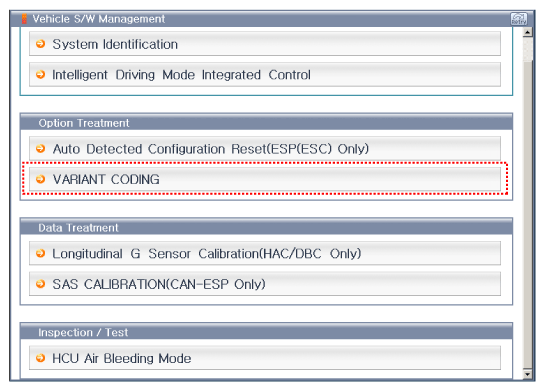

Fig 4: Display - Variant Coding Screen (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

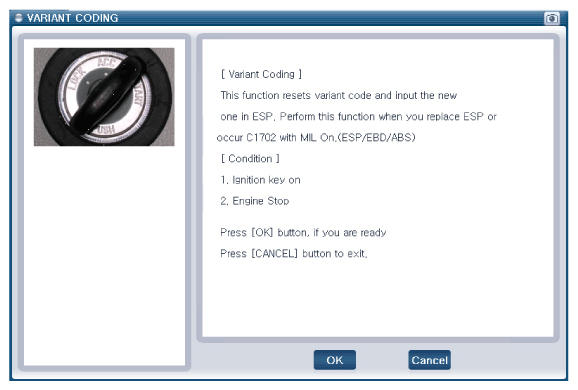

Fig 5: Display - Variant Coding Screen (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

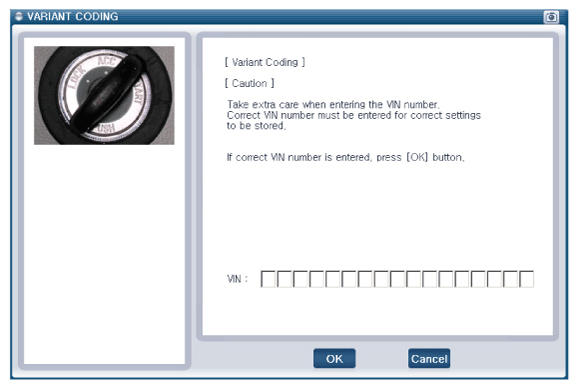

Fig 6: Display - Variant Coding Screen (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Display - Variant Coding Screen (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Longitudinal G Sensor Calibration

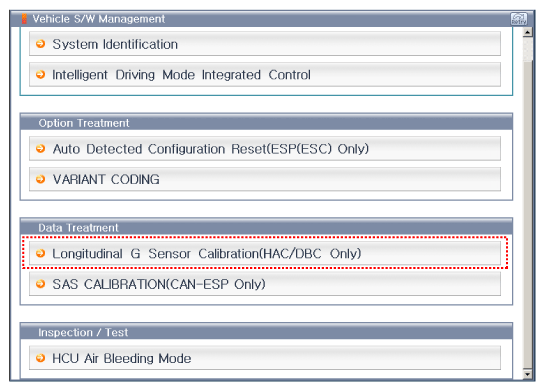

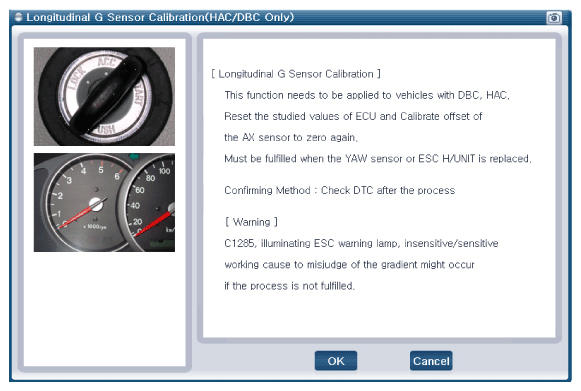

Fig 8: Display - Longitudinal G Sensor Calibration Screen (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

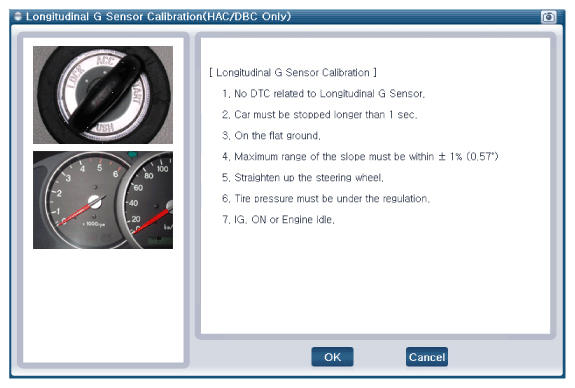

Fig 9: Display - Longitudinal G Sensor Calibration Screen (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

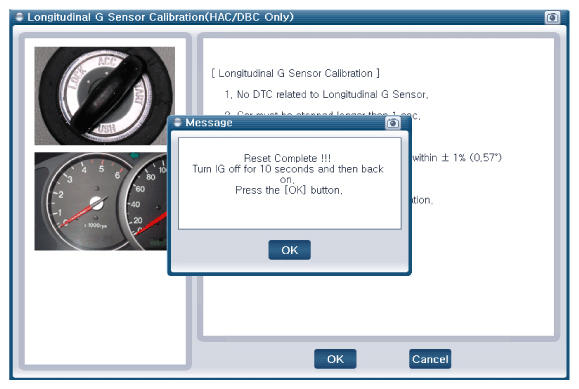

Fig 10: Display - Longitudinal G Sensor Calibration Screen (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 11: Display - Longitudinal G Sensor Calibration Screen (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

SAS CALIBRATION

Fig 12: Display - Longitudinal G Sensor Calibration Screen (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 13: Display - Longitudinal G Sensor Calibration Screen (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 14: Display - Longitudinal G Sensor Calibration Screen (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 15: Display - Longitudinal G Sensor Calibration Screen (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
