Calibration procedure

Perform wheel alignment and place the steering wheel in a line within ±5° error.

Fig 1: Performing Calibration Procedure Wheel Alignment

Courtesy of HYUNDAI MOTOR AMERICA

1. Connect the GDS. (CAN line or OBD connector)
2. Turn ignition switch on.
3. Press calibration button of the Steering Wheel Angle Sensor.
4. HECU calibration procedure is performed.

   (Calibration records, DTC codes erasure)

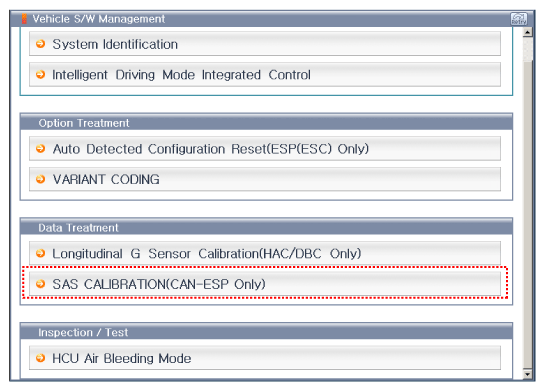

   Fig 2: Display - HECU Calibration Procedure Screen

   Courtesy of HYUNDAI MOTOR AMERICA

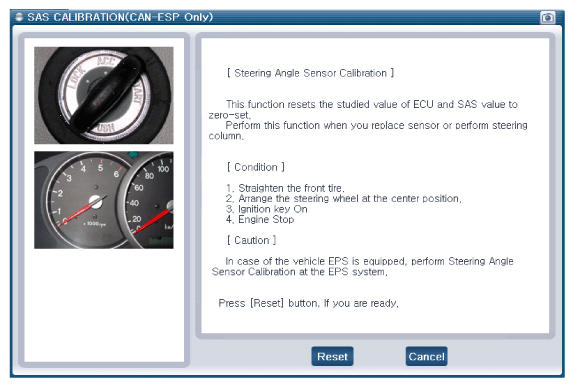

   Fig 3: Display - SAS Calibration Screen

   Courtesy of HYUNDAI MOTOR AMERICA

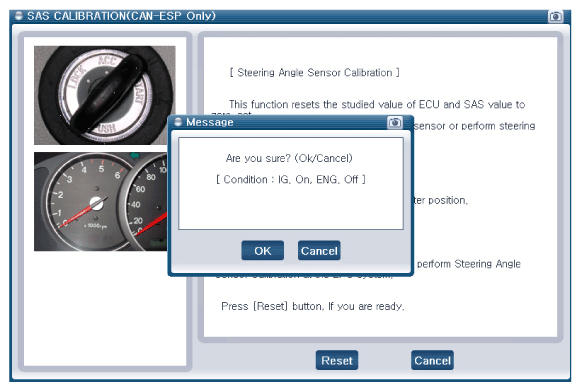

   Fig 4: Display - SAS Calibration Message Confirmation Screen (1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA

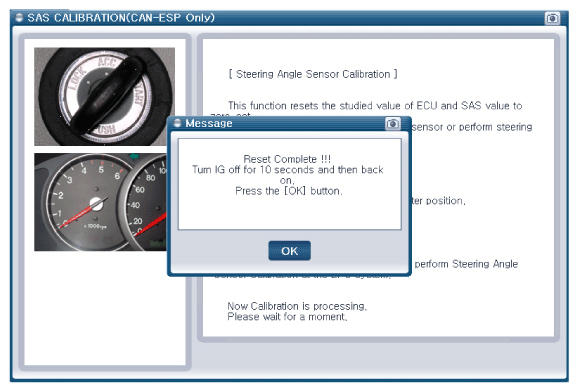

   Fig 5: Display - SAS Calibration Message Confirmation Screen (2 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
