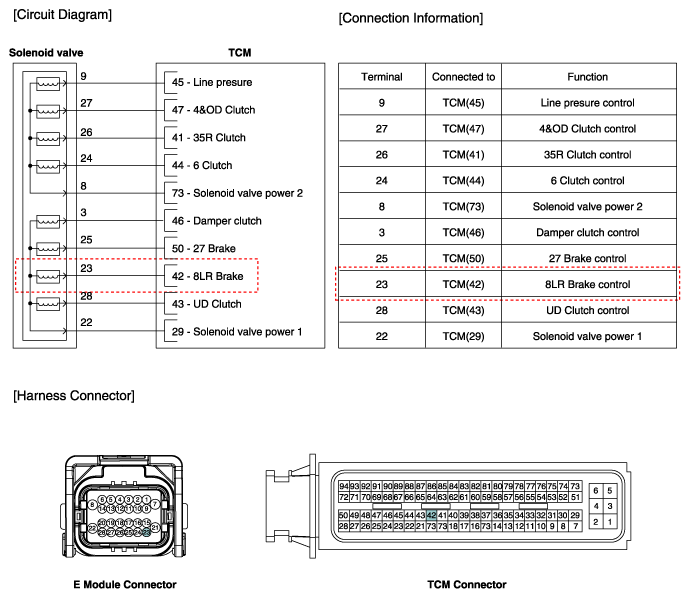

Home › Hyundai › 2015 › Genesis 5.0 › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transmission Control System › 8LR Brake Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
