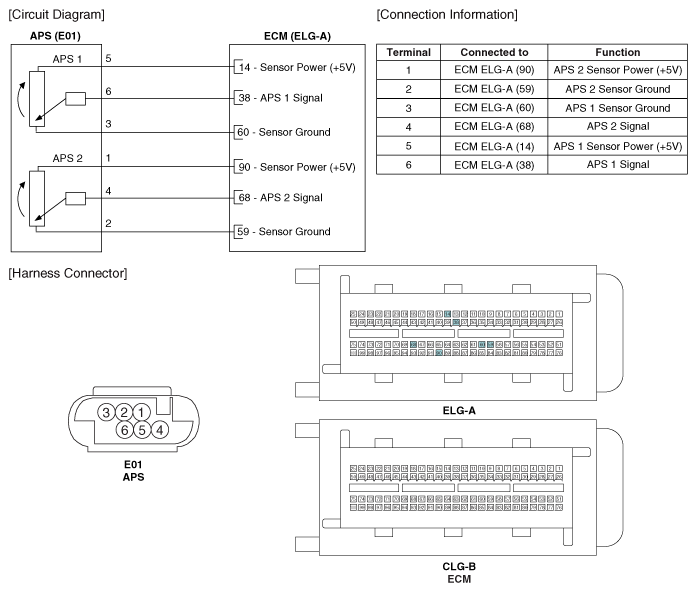

Home › Hyundai › 2015 › Genesis Coupe 3.8, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
