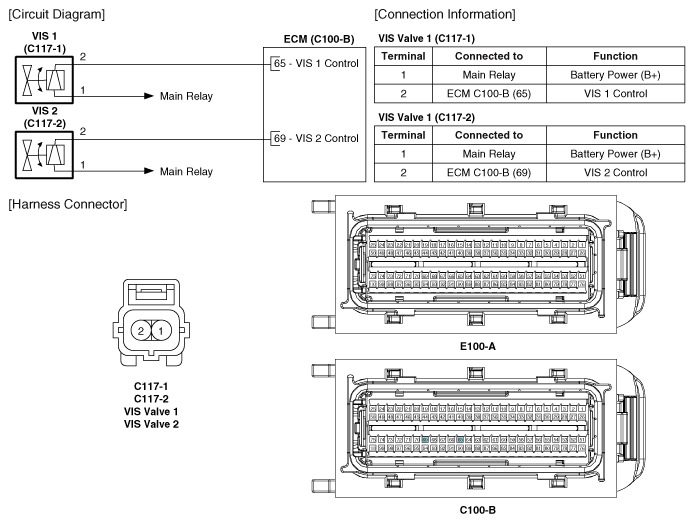

Home › Hyundai › 2015 › Santa Fe GLS, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Variable Intake Solenoid - VIS - Valve › Schematic Diagrams › Circuit Diagram
