Liftgate Switch
Liftgate Switch
Check for continuity between the liftgate latch terminals.

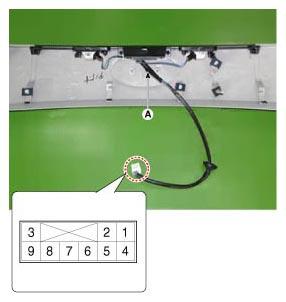

Fig 1: Liftgate Latch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
If continuity is not specified, inspect the switch
Fig 2: Liftgate Latch Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA
