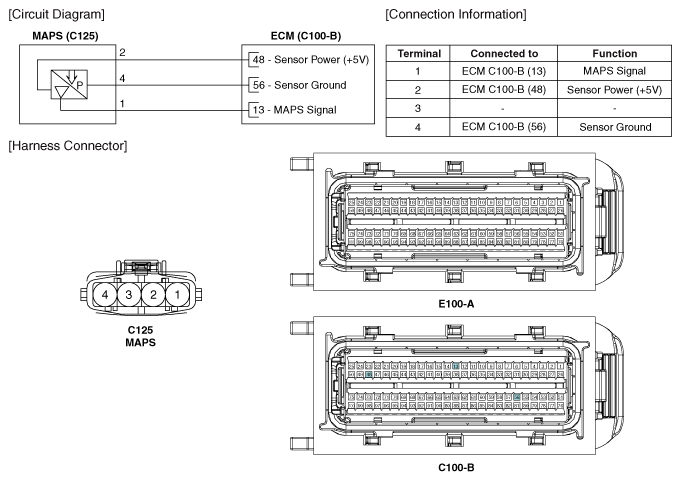

Home › Hyundai › 2015 › Santa Fe Limited, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Manifold Absolute Pressure Sensor - MAPS › Schematic Diagrams › Circuit Diagram
