Santa Fe Sport 2.0T, FWD
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System
›
Automatic Transaxle Control System
›
Components and Components Location
›
Component Location
Component Location

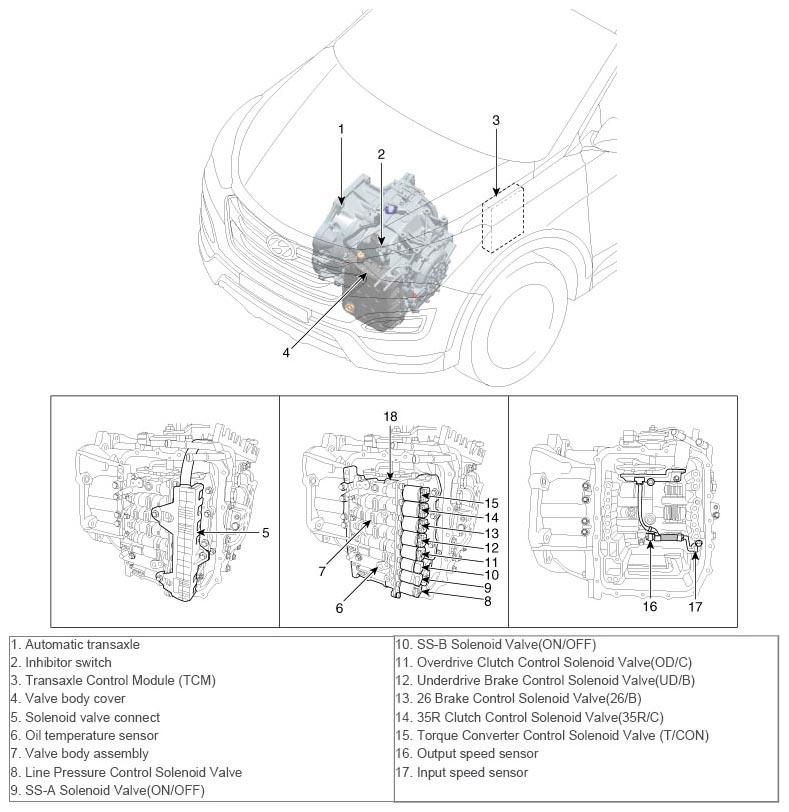

Fig 1: Automatic Transaxle System Components Location
Courtesy of HYUNDAI MOTOR AMERICA

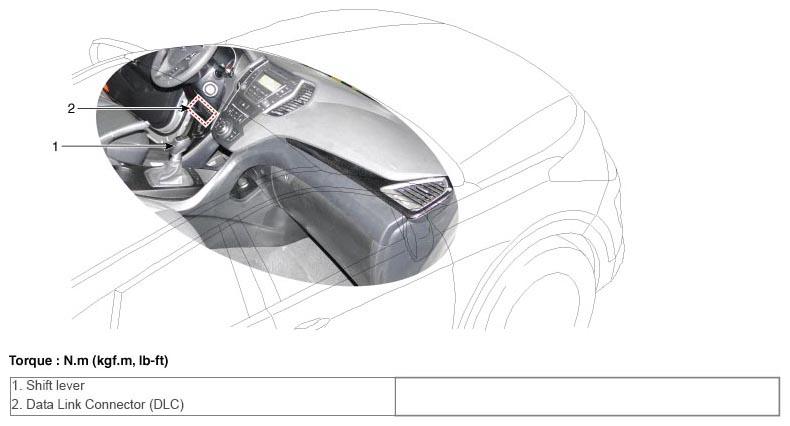

Fig 2: Shift Lever And Data Link Connector Location
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
