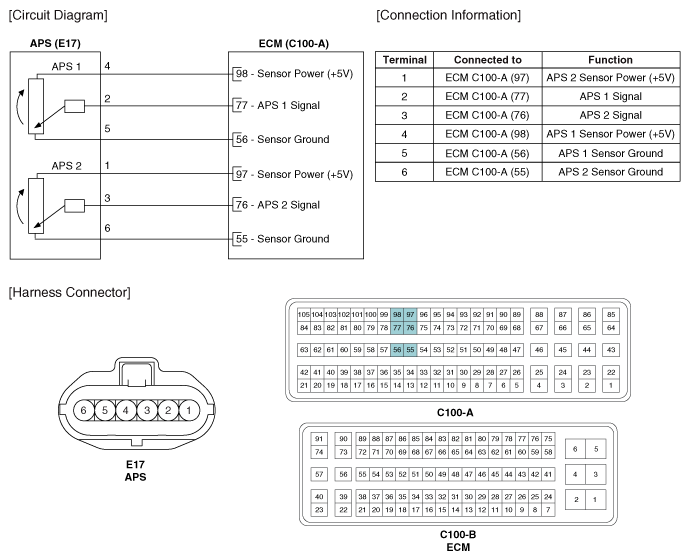

Home › Hyundai › 2015 › Santa Fe Sport Base, AWD › Repair and Diagnosis (Single Page) › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
