Charging System: Battery: Troubleshooting

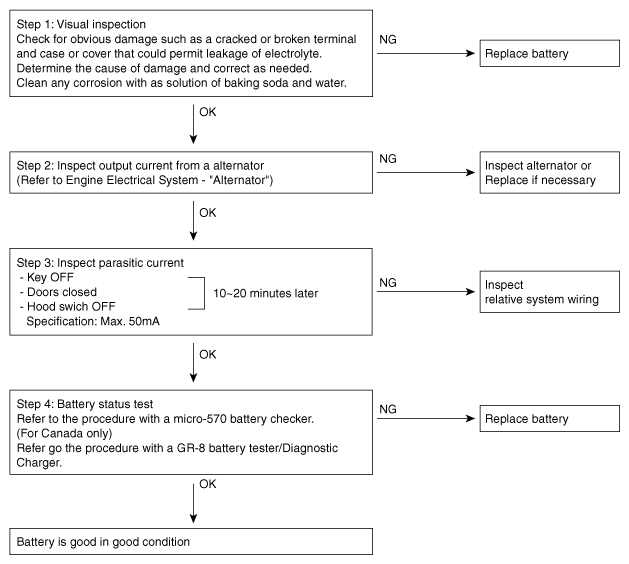

Fig 1: Charging System Troubleshooting Chart
G10582602Courtesy of HYUNDAI MOTOR AMERICA
