Home › Hyundai › 2015 › Santa Fe Sport Base, AWD › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System - 2.4L › Intake Manifold › Components And Components Location › Components

Components And Components Location: Components

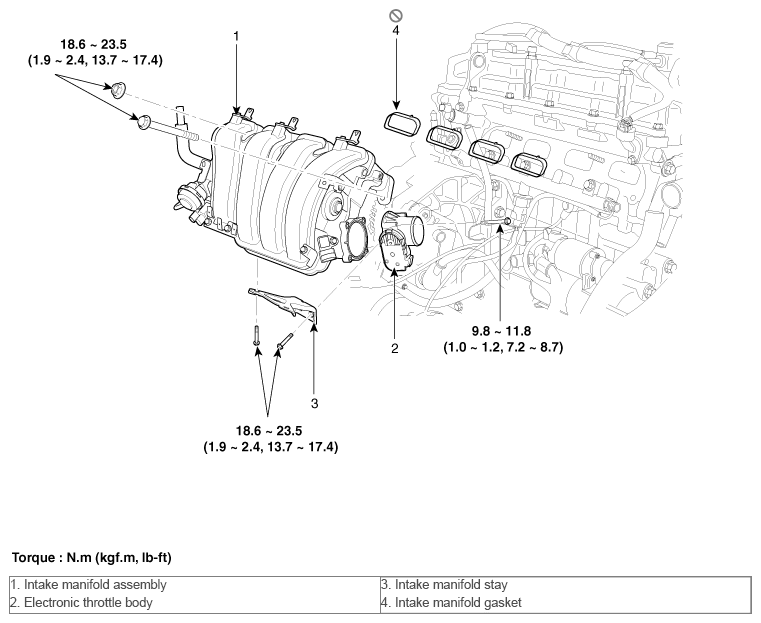

Fig 1: Intake Manifold Replacement Components With Torque Specification
G10587552Courtesy of HYUNDAI MOTOR AMERICA
