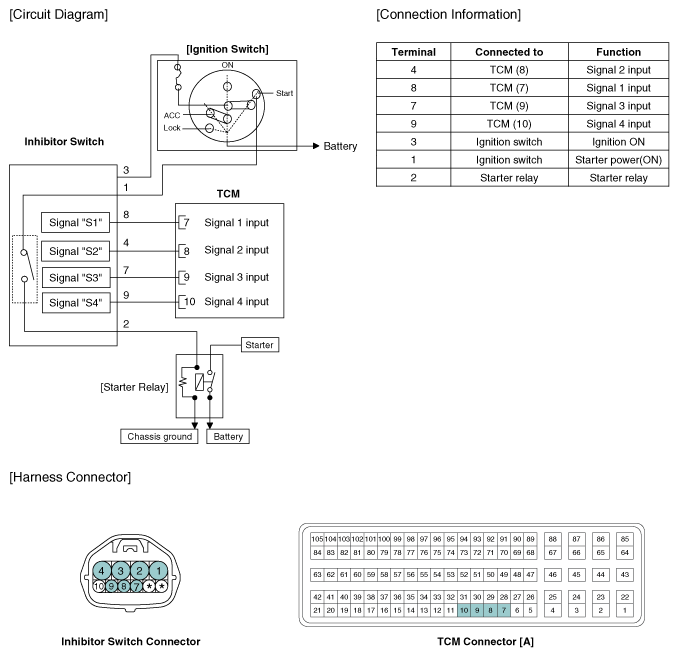

Home › Hyundai › 2015 › Santa Fe Sport Base, AWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Inhibitor Switch › Schematic Diagrams › Circuit Diagram
