Accelerator Position Sensor (APS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

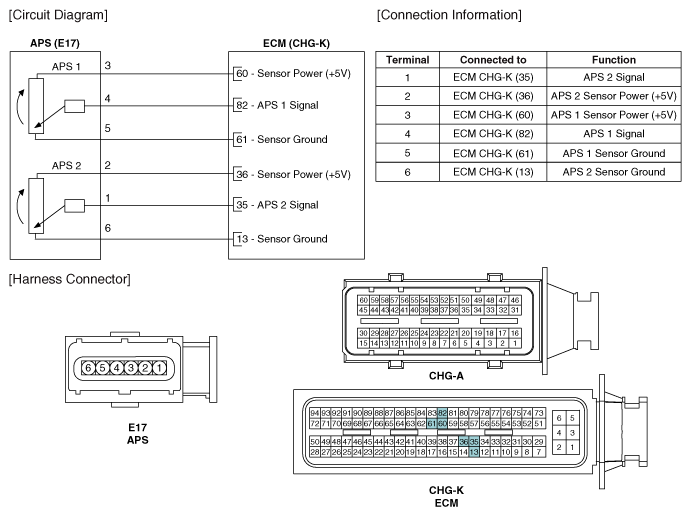

Fig 1: APS Circuit Diagram With Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
