Sonata Hybrid Limited
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (HEV)
›
Components and Components Location
›
Components Location
Components Location

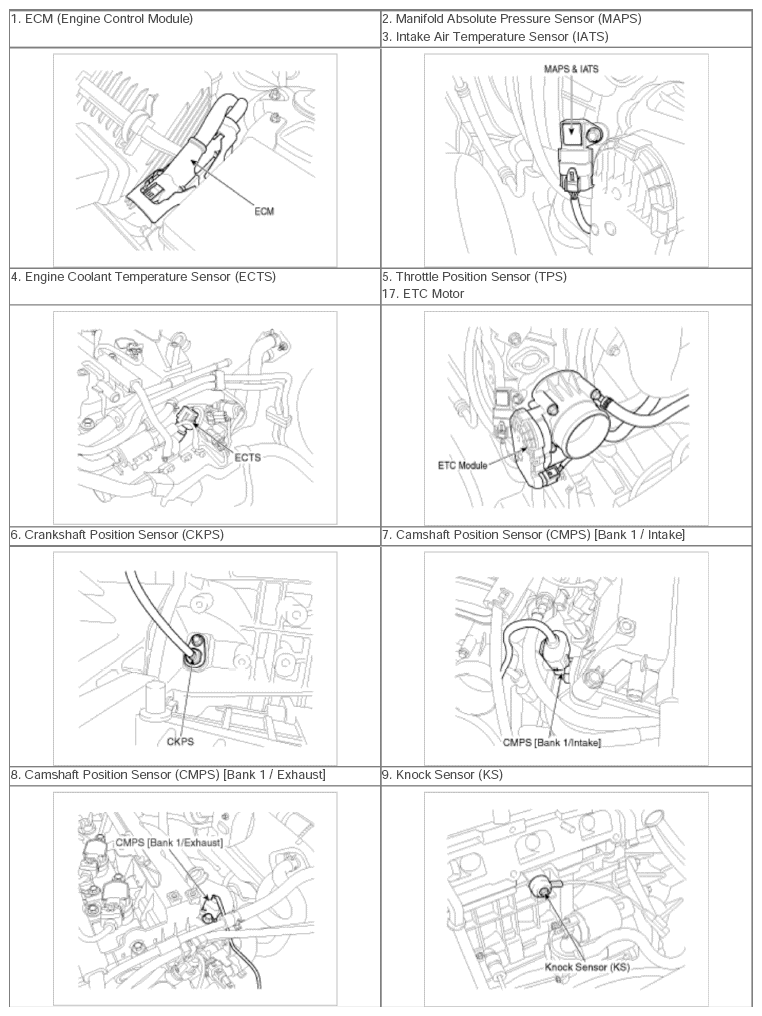

Fig 1: Identifying Engine Control/Fuel Components (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

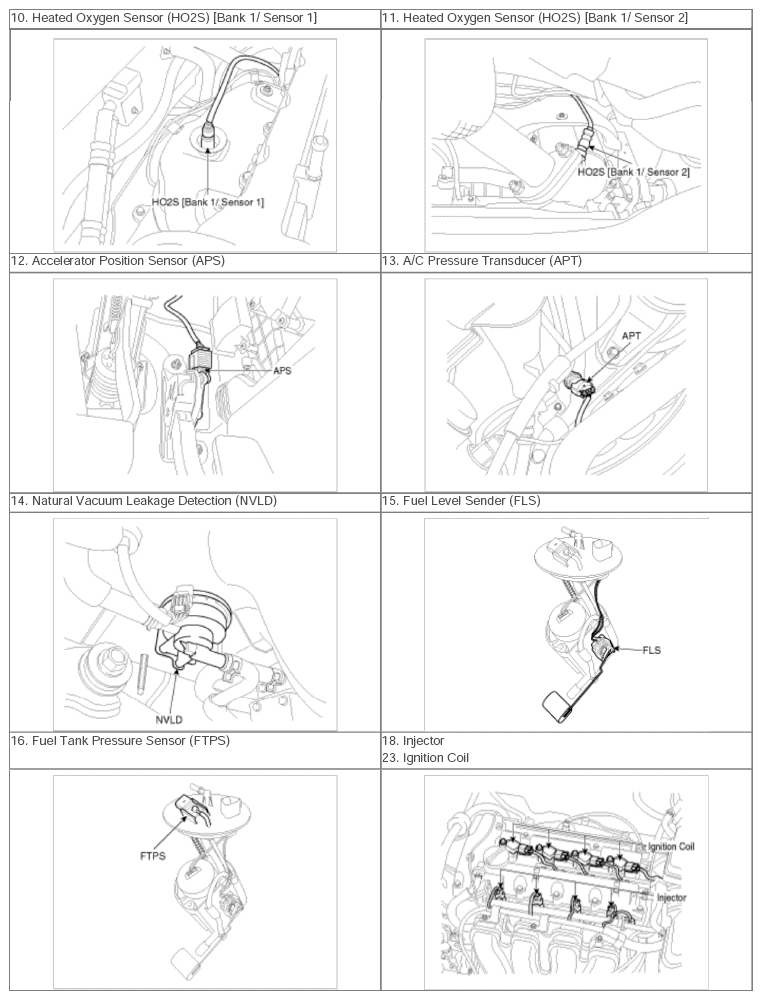

Fig 2: Identifying Engine Control/Fuel Components (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

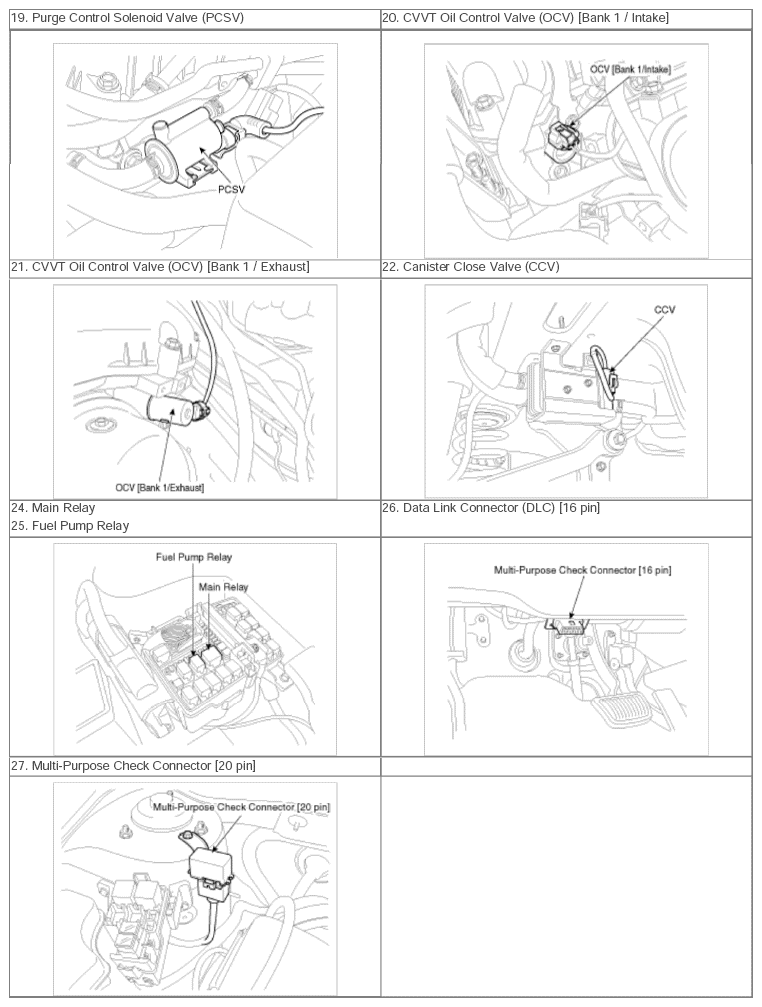

Fig 3: Identifying Engine Control/Fuel Components (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

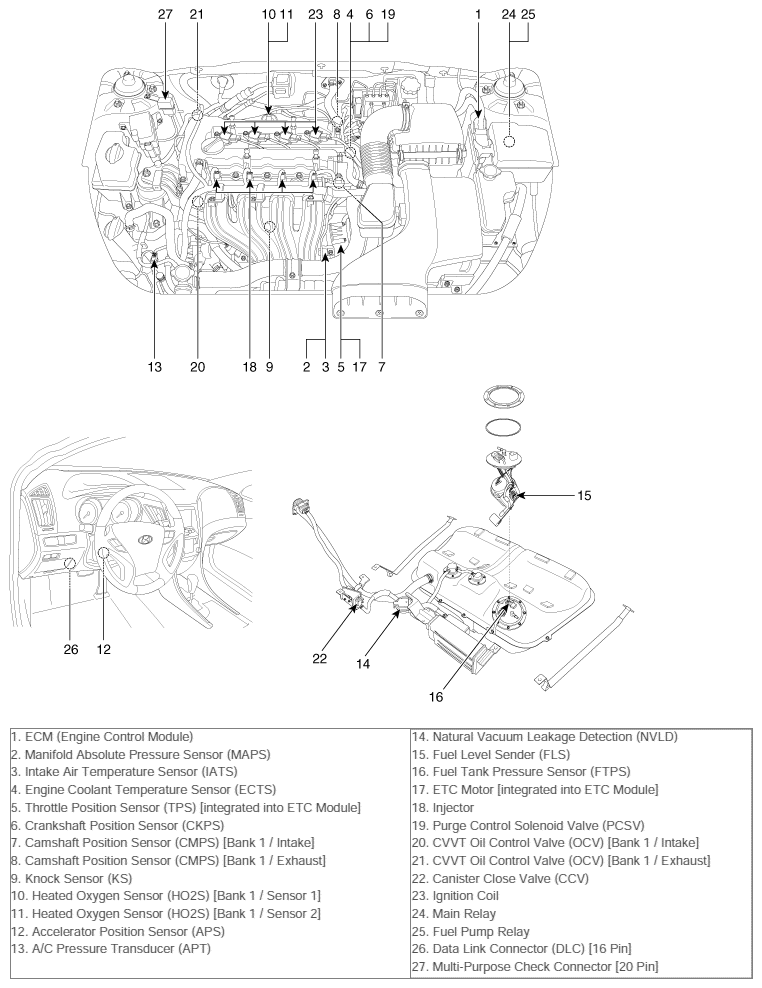

Fig 4: Identifying Engine Control/Fuel Components (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
