Circuit Diagram

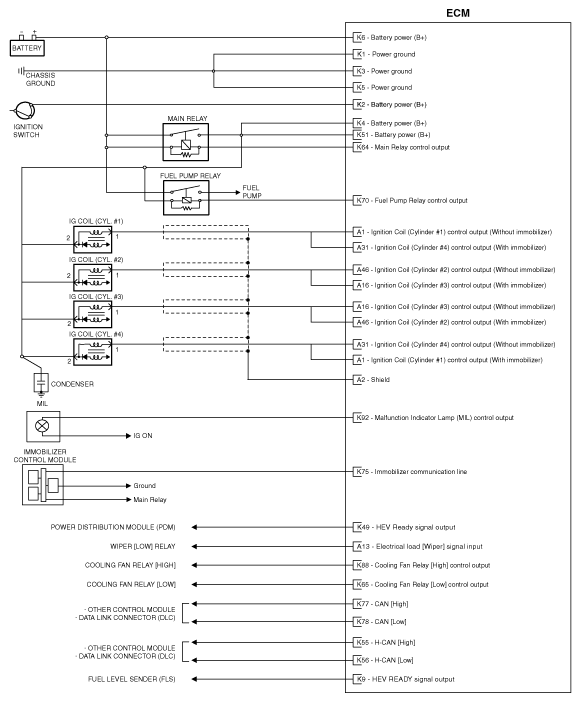

Fig 1: ECM Circuit Diagram (1 Of 4)
G10588600Courtesy of HYUNDAI MOTOR AMERICA

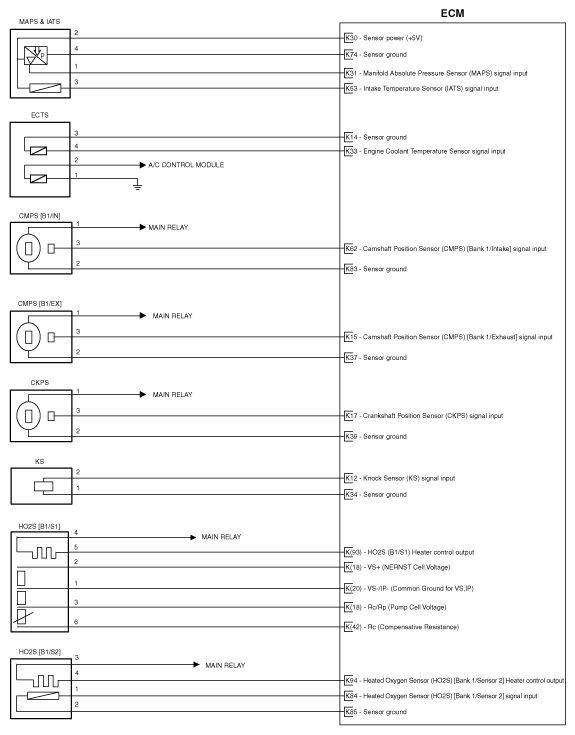

Fig 2: ECM Circuit Diagram (2 Of 4)
G10588601Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: ECM Circuit Diagram (3 Of 4)
G10588602Courtesy of HYUNDAI MOTOR AMERICA

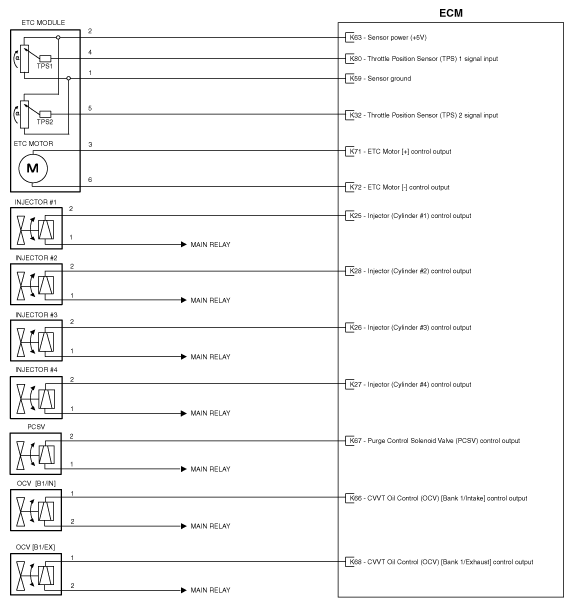

Fig 4: ECM Circuit Diagram (4 Of 4)
G10588603Courtesy of HYUNDAI MOTOR AMERICA
