Circuit Diagram

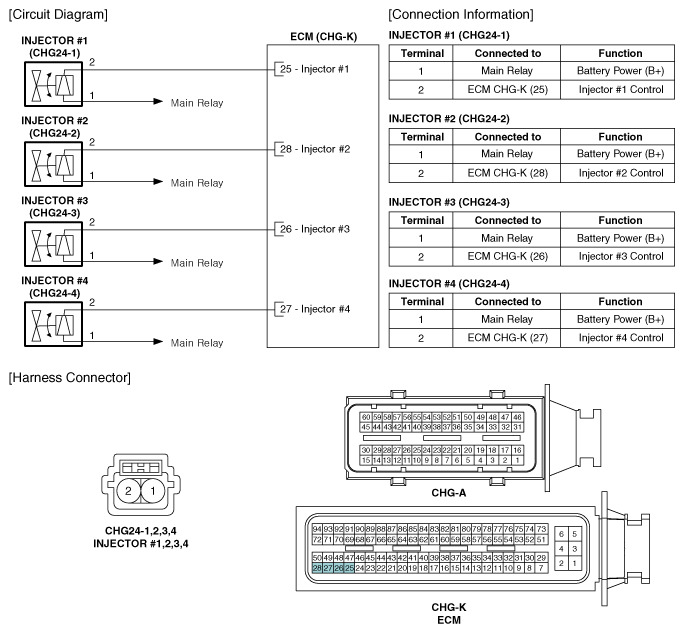

Fig 1: Fuel Injector Circuit Diagram With Connector End Views
G10588658Courtesy of HYUNDAI MOTOR AMERICA
