Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System (HEV)
›
Output Speed Sensor
›
Troubleshooting
›
Signal Waveform
Signal Waveform

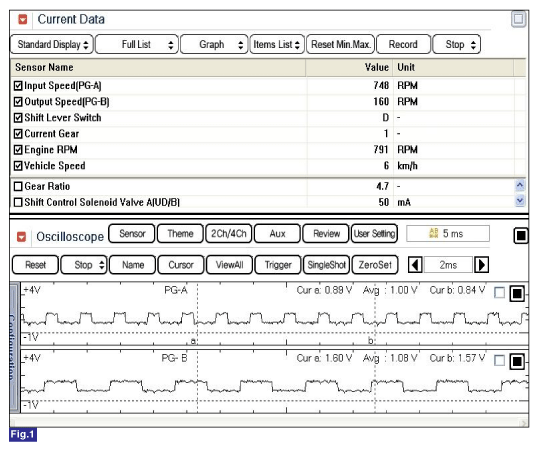

Fig 1: Screen Display - Current Data (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

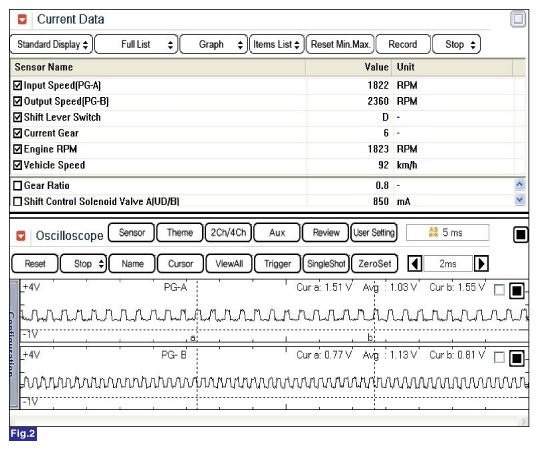

Fig 2: Screen Display - Current Data (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
