Home › Hyundai › 2015 › Sonata Hybrid Limited › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System (HEV) › Shift Lever › Components and Components Location › Components

Components and Components Location: Components

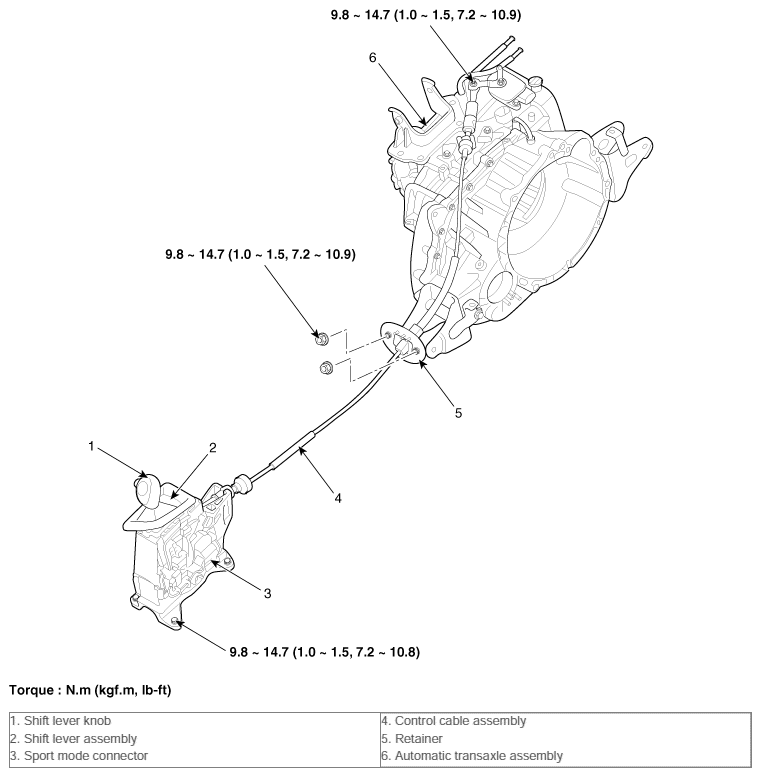

Fig 1: Identifying Shift Lever Related Components With Torque Specification
G10588875Courtesy of HYUNDAI MOTOR AMERICA
