Circuit Diagram

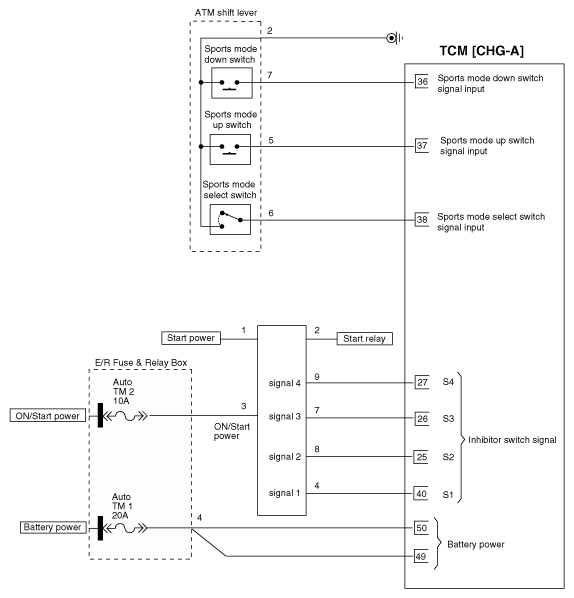

Fig 1: Transmission Control Module Circuit Diagram (1 Of 2)
G10588809Courtesy of HYUNDAI MOTOR AMERICA

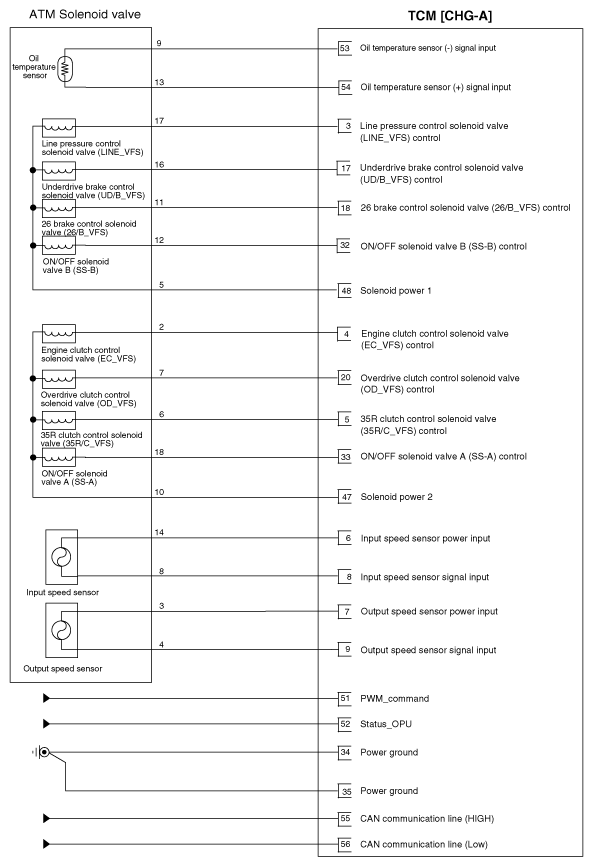

Fig 2: Transmission Control Module Circuit Diagram (2 Of 2)
G10588810Courtesy of HYUNDAI MOTOR AMERICA
