Sonata Limited 2.0T
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.0L (Except HEV)
›
Engine Control System
›
Components and Components Location
›
Components Location
Components Location

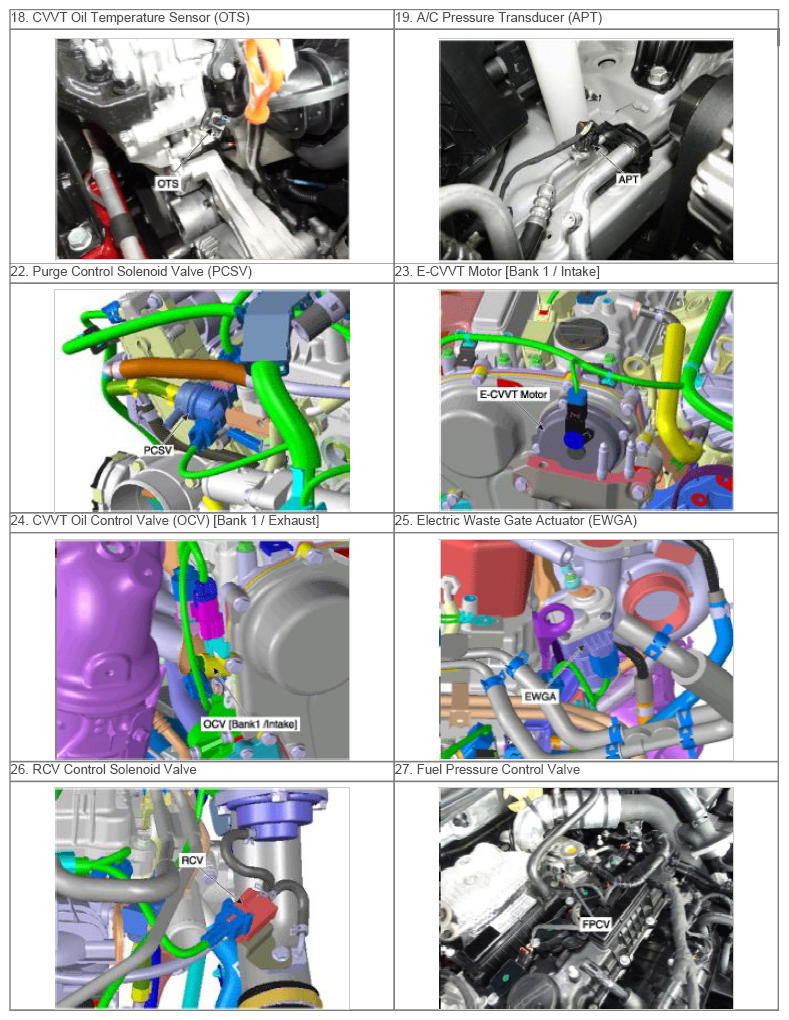

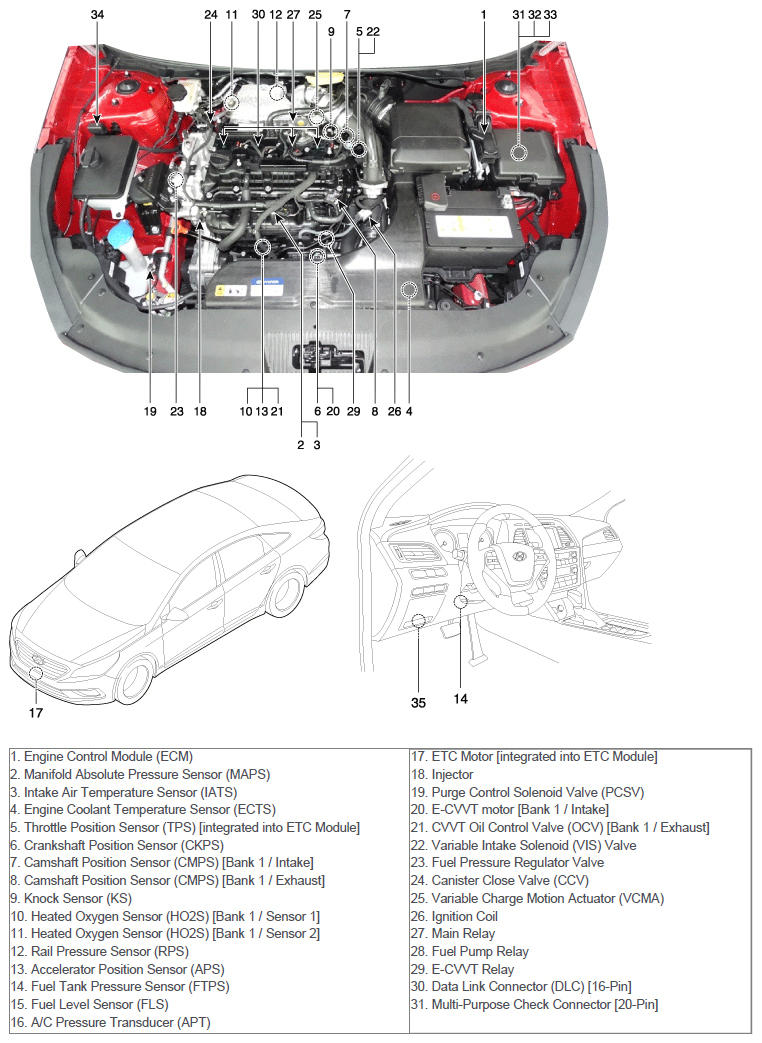

Fig 1: ECM Related Components Location (1 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

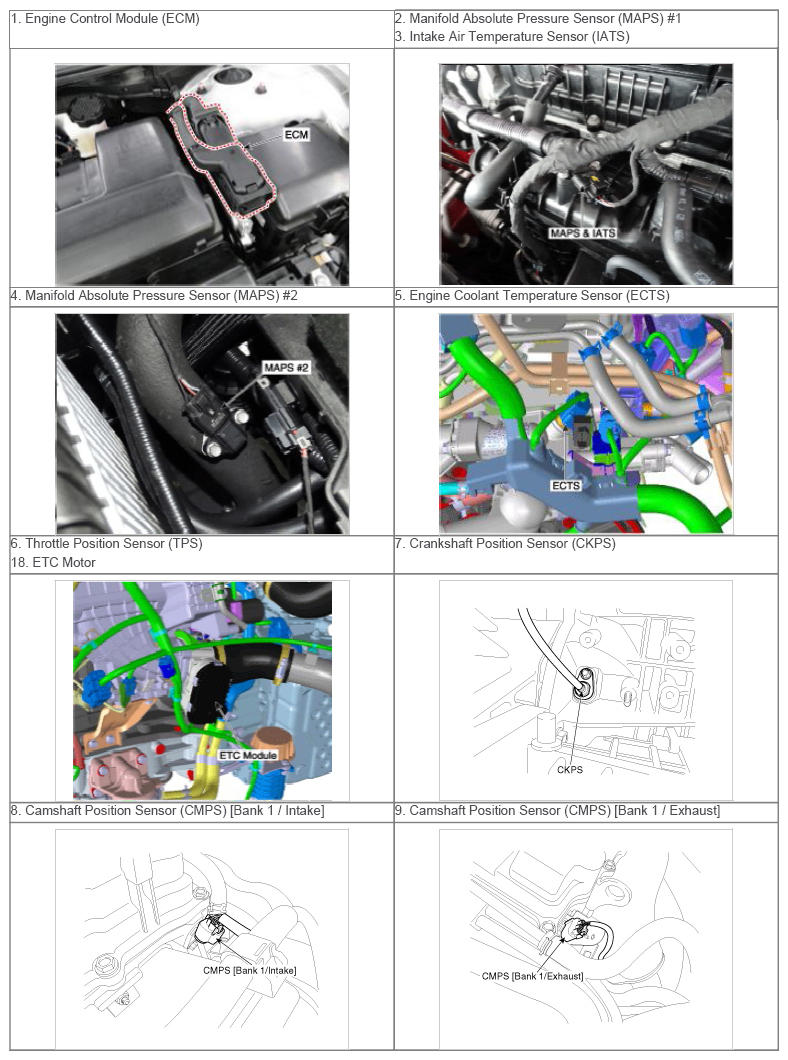

Fig 2: ECM Related Components Location (2 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

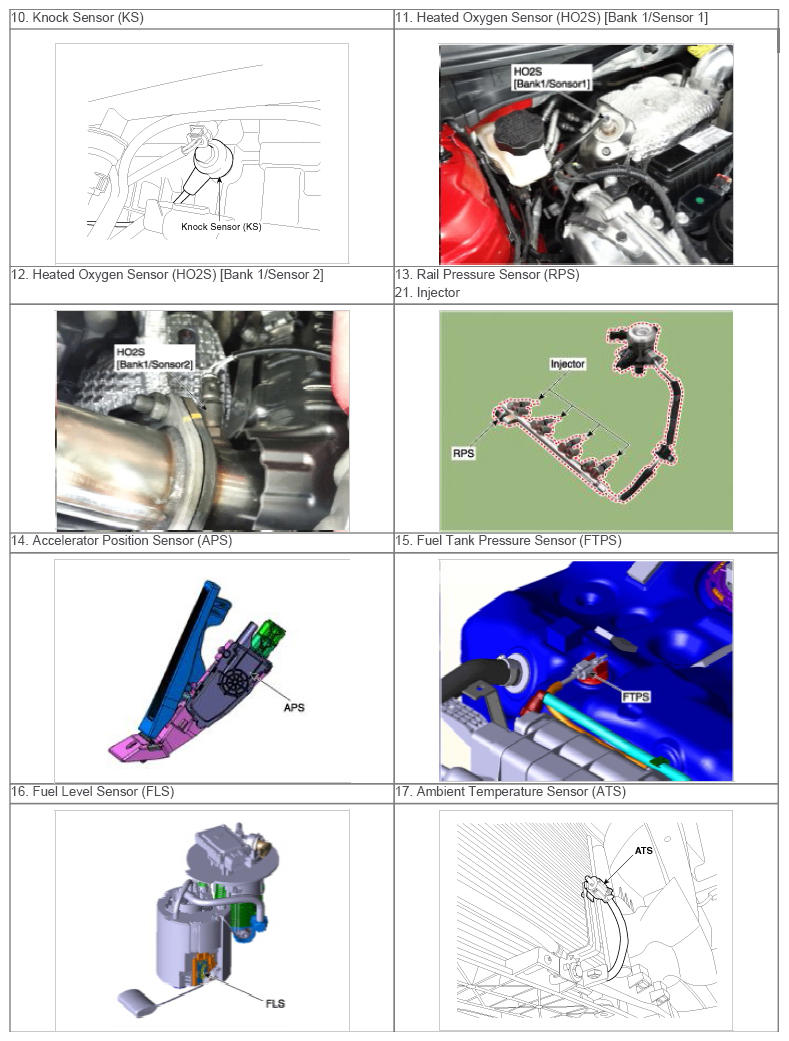

Fig 3: ECM Related Components Location (3 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

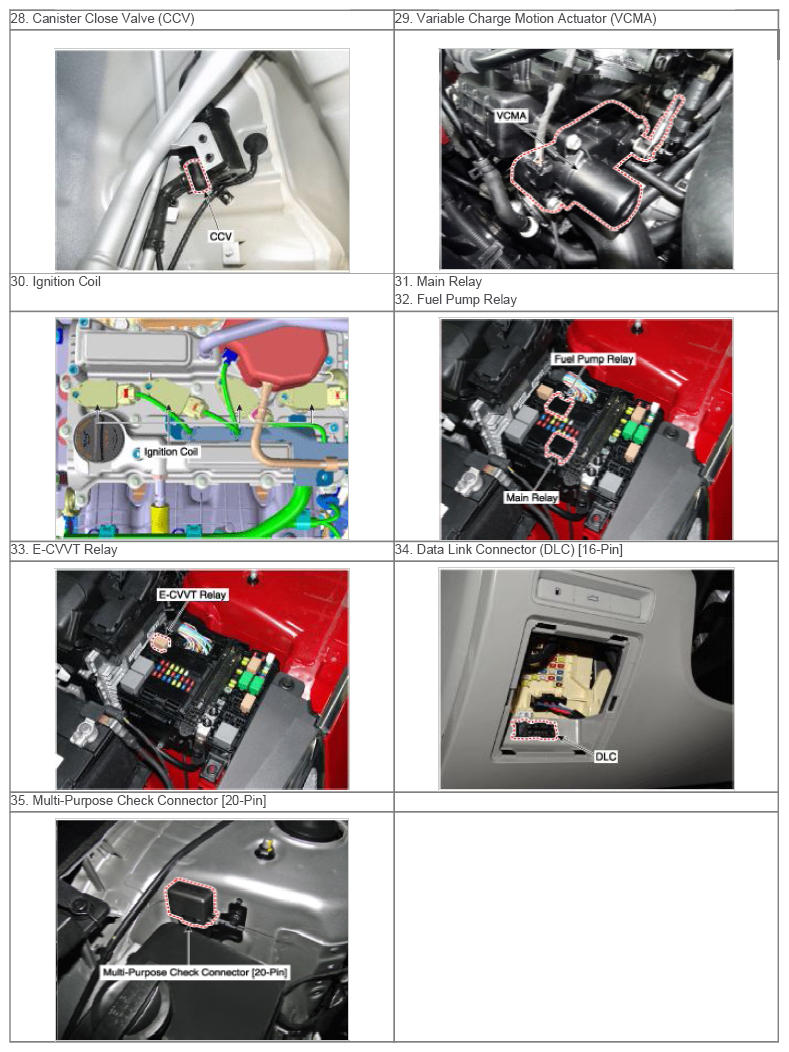

Fig 4: ECM Related Components Location (4 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

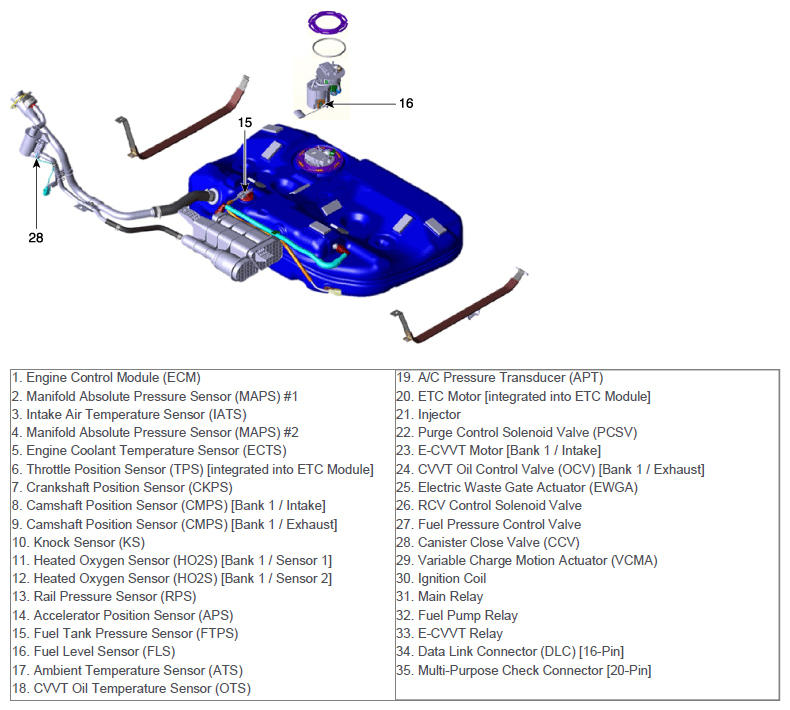

Fig 5: ECM Related Components Location (5 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 6: ECM Related Components Location (6 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
