Smart Key Code Saving

Connect the DLC cable of GDS to the Data Link Connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart Key Code Saving".

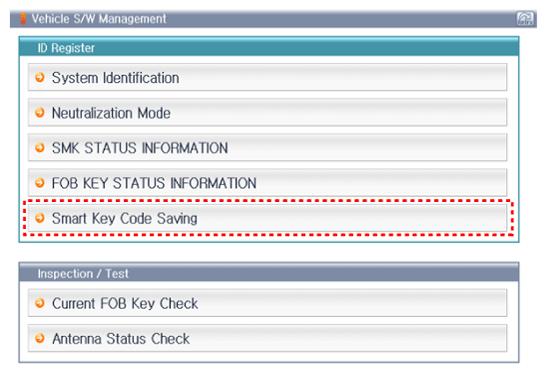

Fig 2: Screen Display - Smart Key Code Saving (1 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart Key Teaching" menu, push "ENTER" key, then the screen will display the graphic.

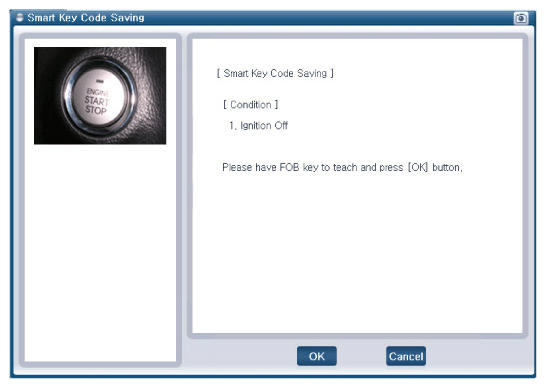

Fig 3: Screen Display - Smart Key Code Saving (2 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.
Input the "Pin Code" for first key teaching.

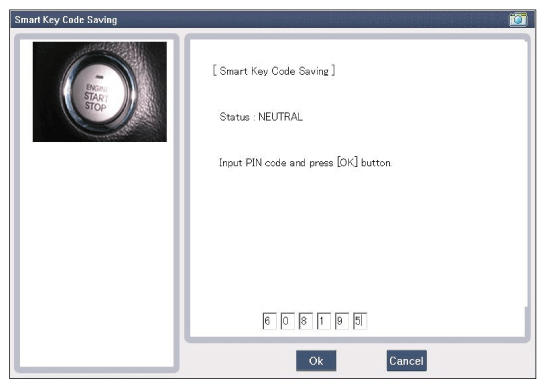

Fig 4: Screen Display - Smart Key Code Saving (3 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

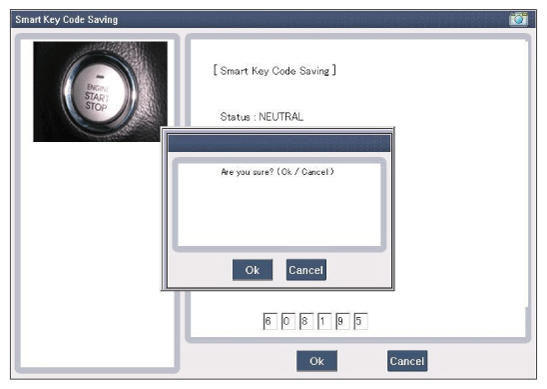

Fig 5: Screen Display - Smart Key Code Saving (4 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

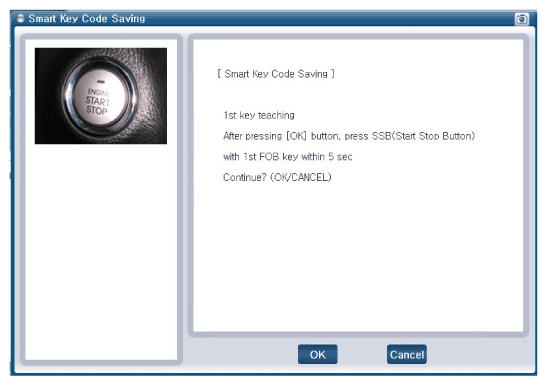

Fig 6: Screen Display - Smart Key Code Saving (5 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First Key Teaching Completed".

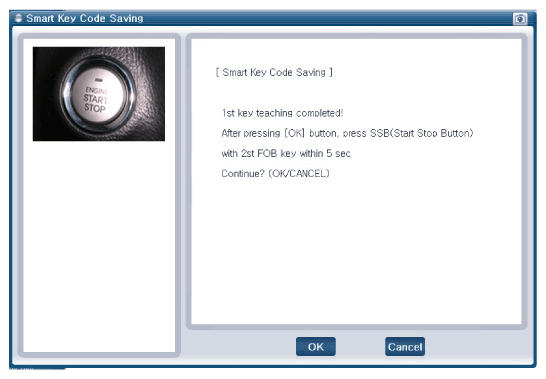

Fig 7: Screen Display - Smart Key Code Saving (6 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 8: Screen Display - Smart Key Code Saving (7 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second Key Teaching Completed".

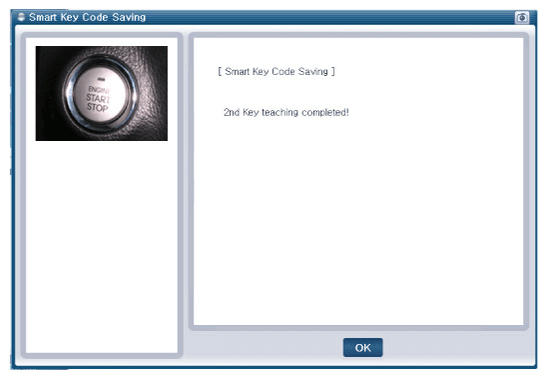

Fig 9: Screen Display - Smart Key Code Saving (8 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will display the graphic when key teaching process is completed.

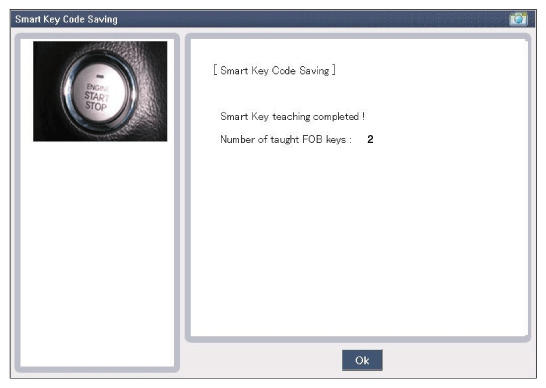

Fig 10: Screen Display - Smart Key Code Saving (9 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
