Circuit Diagram

(M/T)

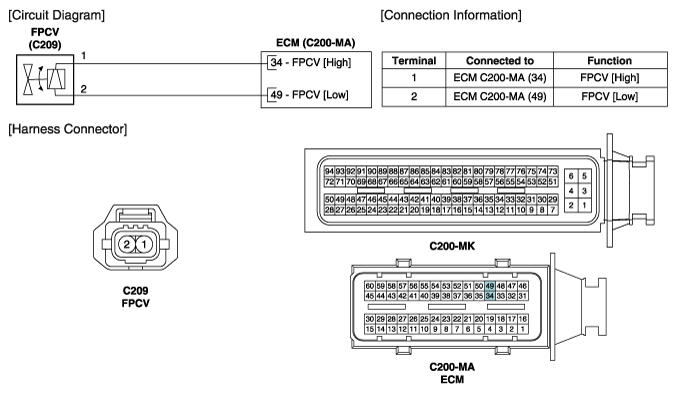

Fig 1: FPCV Circuit Diagram (M/T)
G10611553Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

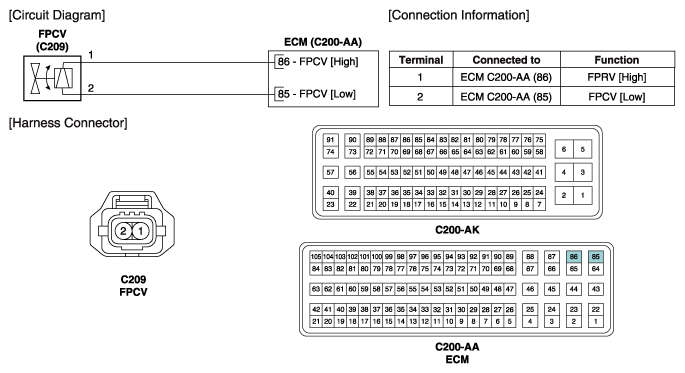

Fig 2: FPCV Circuit Diagram (A/T)
G10611554Courtesy of HYUNDAI MOTOR AMERICA
