Power Window Switch
›
Components and Components Location
›
Components
›
Passenger Power Window Switch
Passenger Power Window Switch

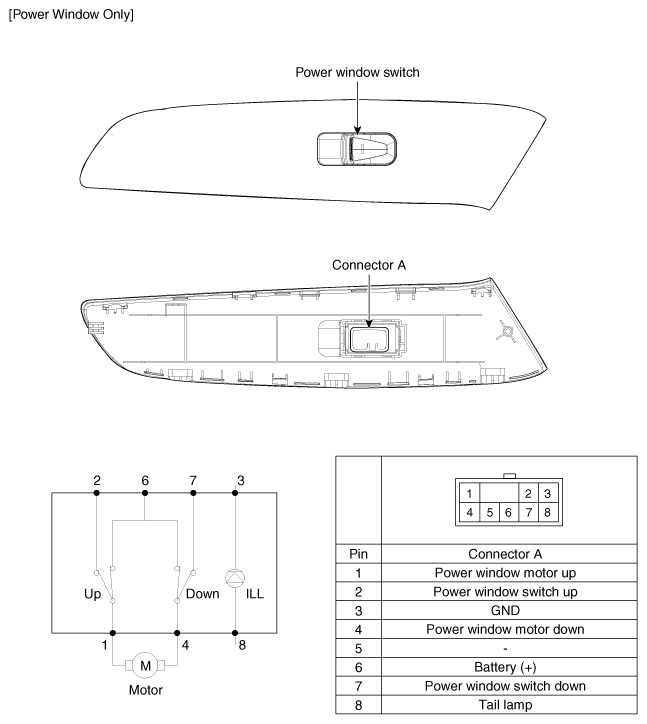

Fig 1: Passenger Power Window Switch Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
