Power Window Main Switch

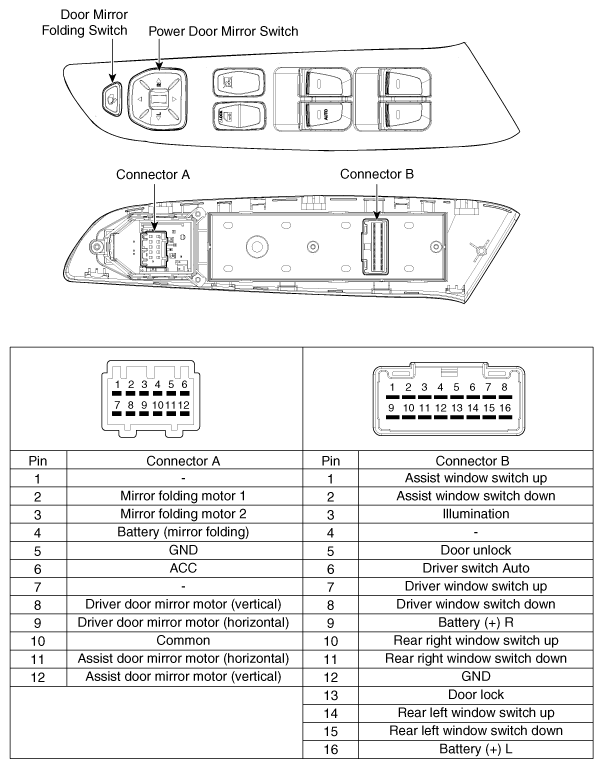

Fig 1: Power Window Main Switch Circuit Diagram And Connector Terminal Identification (1 Of 2)
G10613243Courtesy of HYUNDAI MOTOR AMERICA

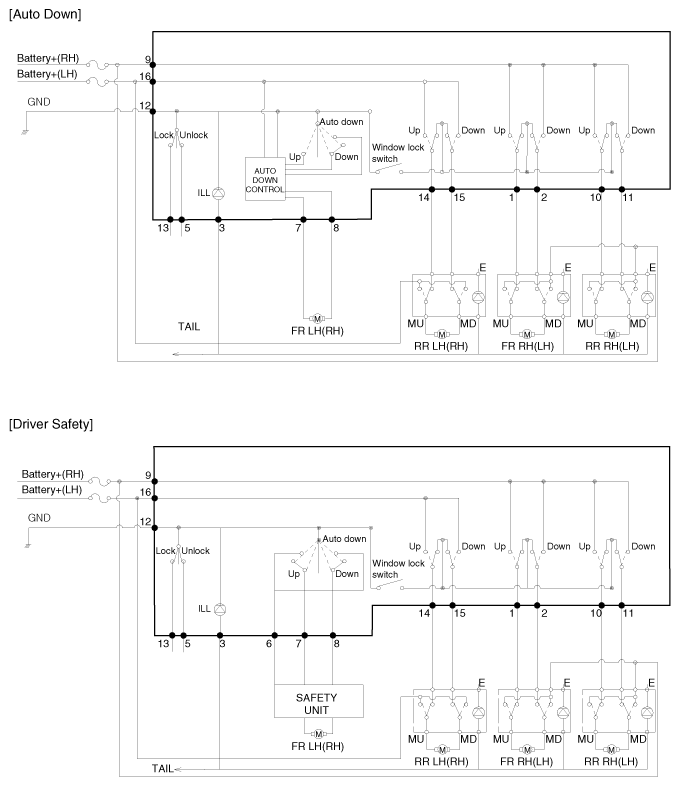

Fig 2: Power Window Main Switch Circuit Diagram And Connector Terminal Identification (2 Of 2)
G10613244Courtesy of HYUNDAI MOTOR AMERICA
