Home › Hyundai › 2015 › Tucson GLS, FWD › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start Stop Button › Components and Components Location › Component

Components and Components Location: Component

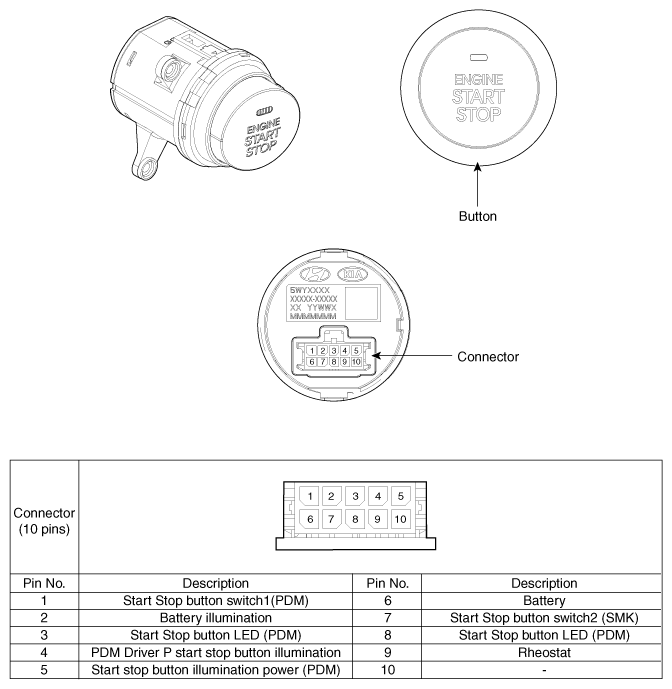

Fig 1: Start Stop Button Components And Connector Terminal Identification
G10613530Courtesy of HYUNDAI MOTOR AMERICA
