Circuit Diagram

(M/T)

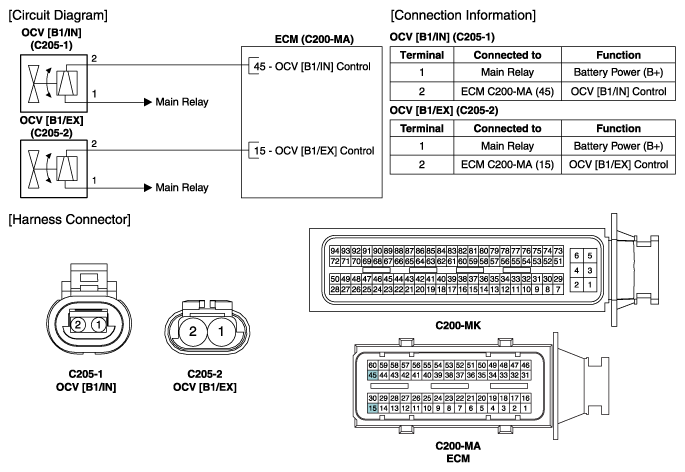

Fig 1: OCV Circuit Diagram (M/T)
G10611542Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

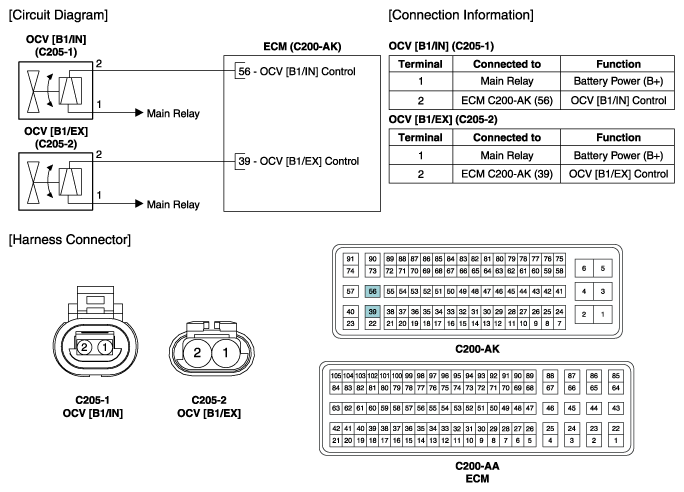

Fig 2: OCV Circuit Diagram (A/T)
G10611543Courtesy of HYUNDAI MOTOR AMERICA
