Circuit Diagram

(M/T)

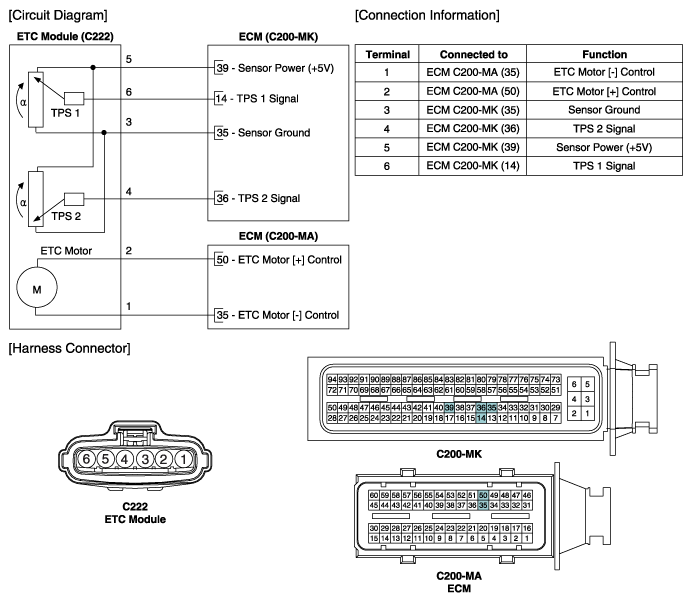

Fig 1: ETC Module Circuit Diagram (M/T)
G10611459Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

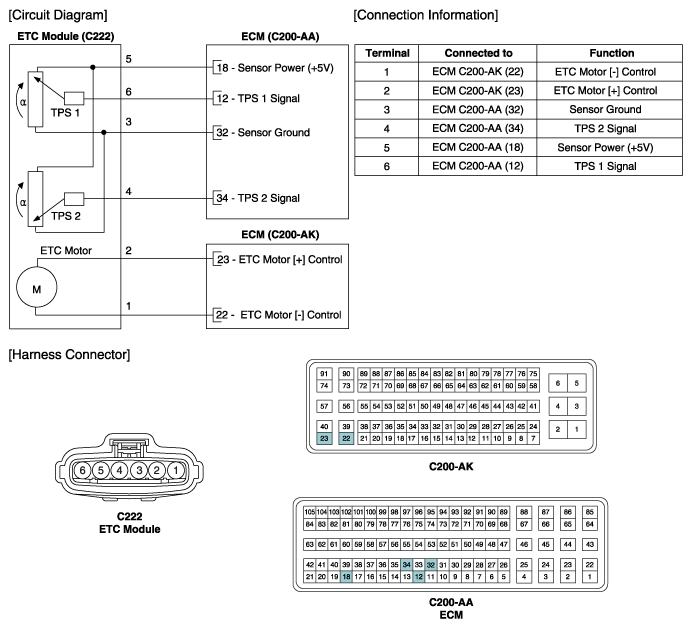

Fig 2: ETC Module Circuit Diagram (A/T)
G10611460Courtesy of HYUNDAI MOTOR AMERICA
