Circuit Diagram

(M/T)

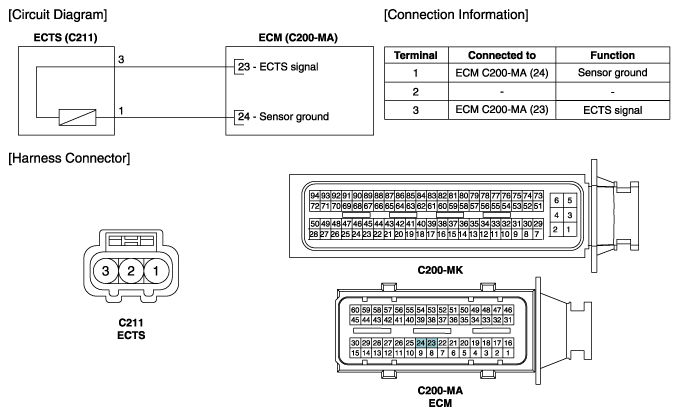

Fig 1: ECTS Circuit Diagram (M/T)
G10611473Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

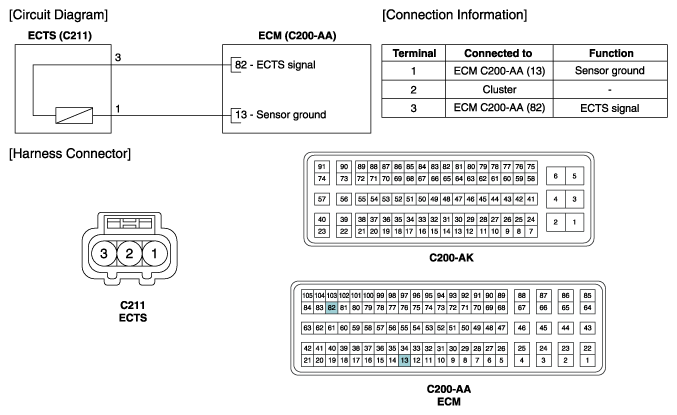

Fig 2: ECTS Circuit Diagram (A/T)
G10611474Courtesy of HYUNDAI MOTOR AMERICA
