Circuit Diagram

(M/T)

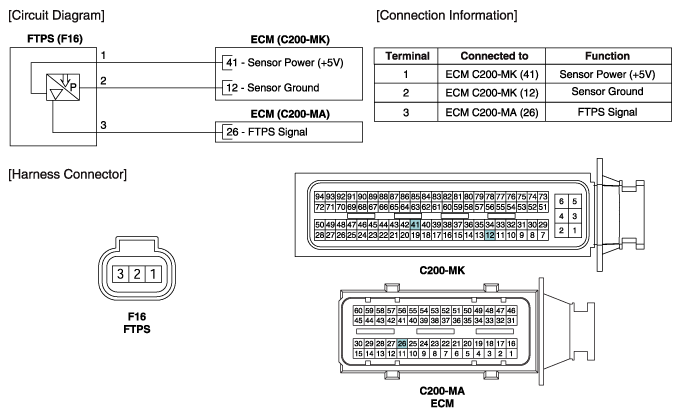

Fig 1: FTPS Circuit Diagram (M/T)
G10611518Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

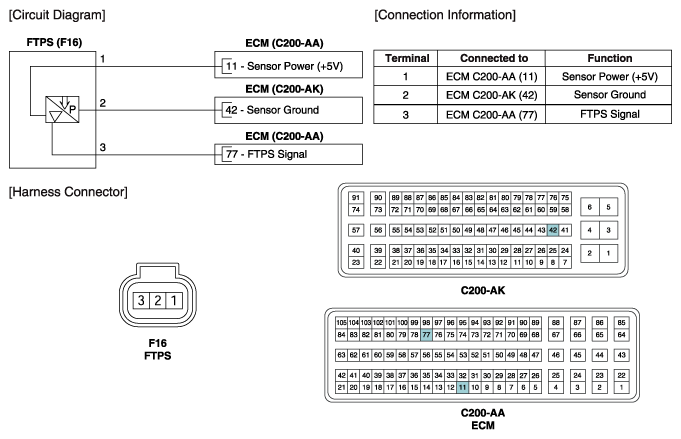

Fig 2: FTPS Circuit Diagram (A/T)
G10611519Courtesy of HYUNDAI MOTOR AMERICA
