Circuit Diagram

(M/T)

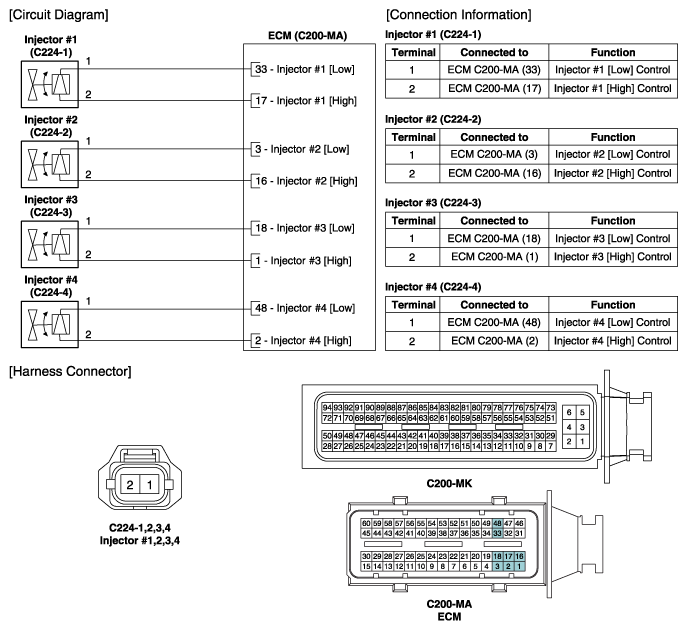

Fig 1: Injector Circuit Diagram (M/T)
G10611524Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

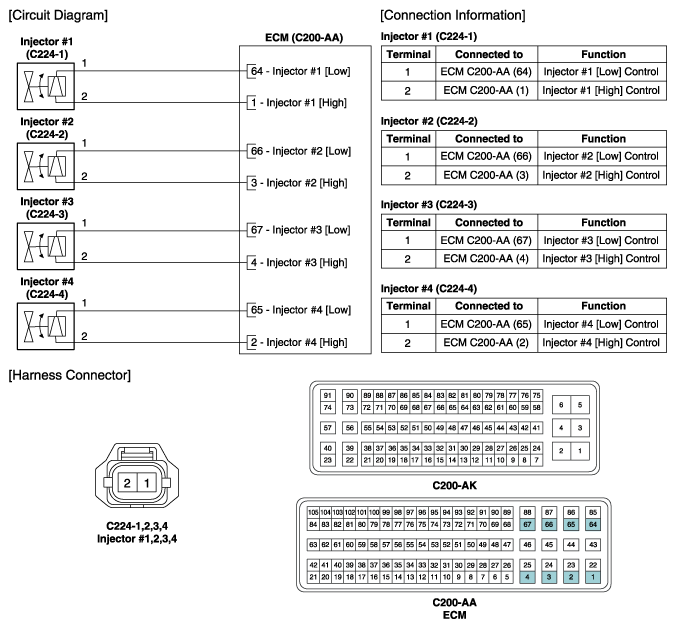

Fig 2: Injector Circuit Diagram (A/T)
G10611525Courtesy of HYUNDAI MOTOR AMERICA
