Circuit Diagram

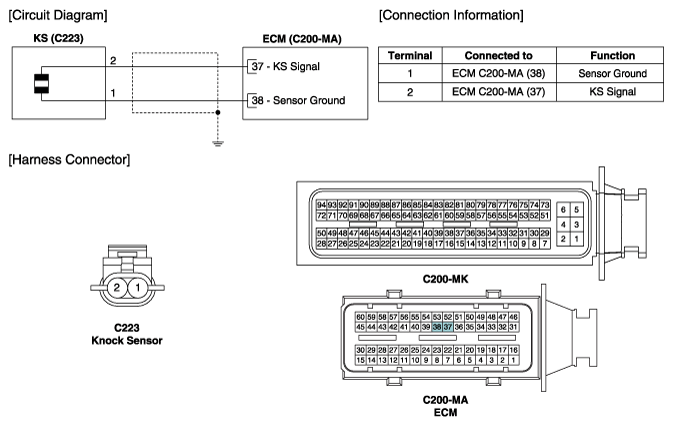

(M/T)

Fig 1: Knock Sensor Circuit Diagram (M/T)
G10611491Courtesy of HYUNDAI MOTOR AMERICA

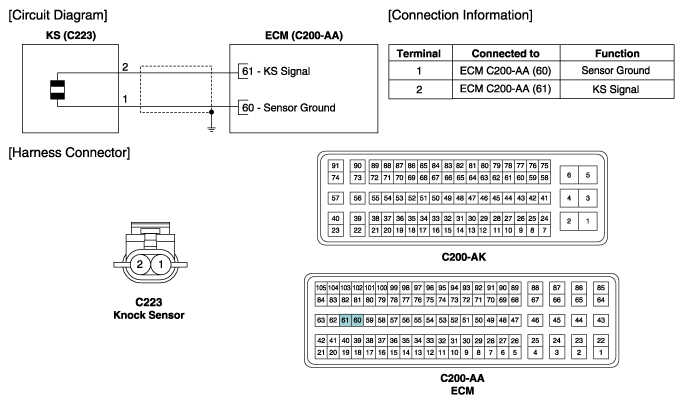

(A/T)

Fig 2: Knock Sensor Circuit Diagram (A/T)
G10611492Courtesy of HYUNDAI MOTOR AMERICA
