Circuit Diagram

(M/T)

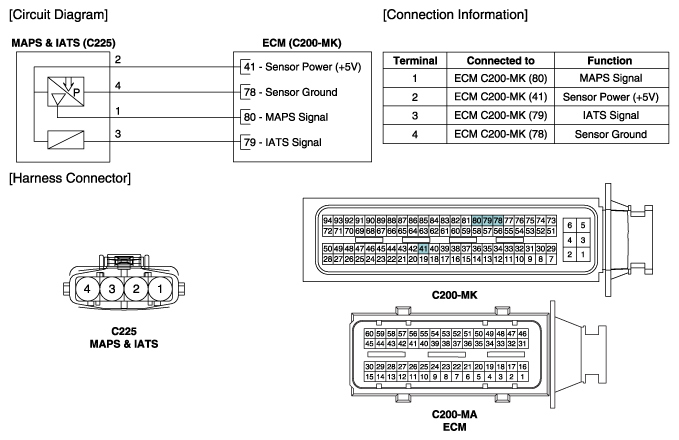

Fig 1: MAPS And IATS Circuit Diagram (M/T)
G10611465Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

Fig 2: MAPS And IATS Circuit Diagram (A/T)
G10611466Courtesy of HYUNDAI MOTOR AMERICA
