Circuit Diagram

(M/T)

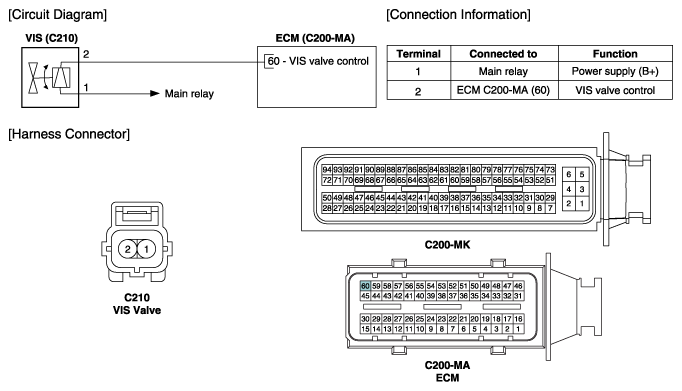

Fig 1: VIS Circuit Diagram (M/T)
G10611548Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

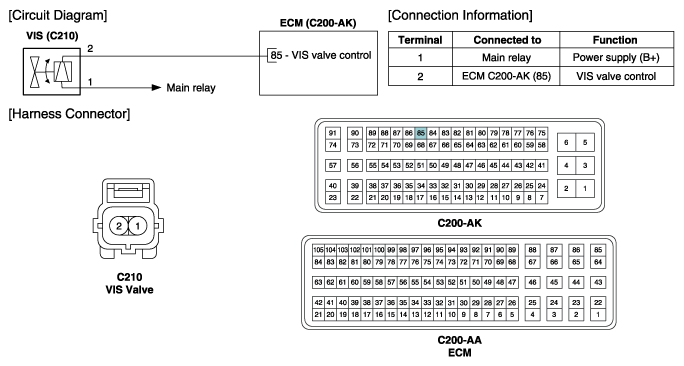

Fig 2: VIS Circuit Diagram (A/T)
G10611549Courtesy of HYUNDAI MOTOR AMERICA
