Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

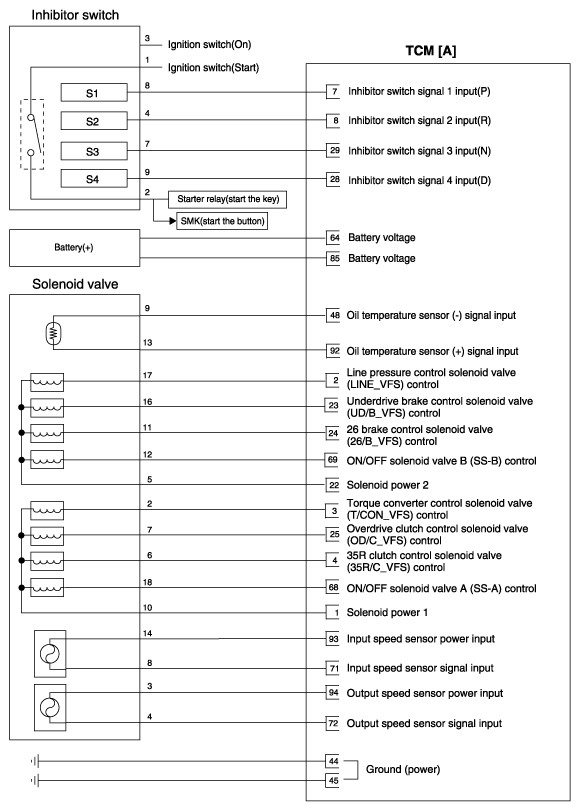

Fig 1: Transaxle Control Module - Circuit Diagram (1 Of 2)
G10631717Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Transaxle Control Module - Circuit Diagram (2 Of 2)
G10631718Courtesy of HYUNDAI MOTOR AMERICA
