Tucson GLS, FWD
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - 2.0L
›
Output Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

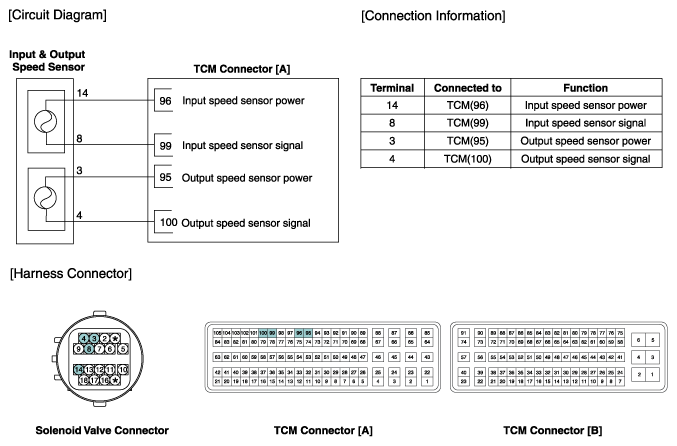

Fig 1: Input And Output Speed Sensor Schematic Diagram With Connector End View
