Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA

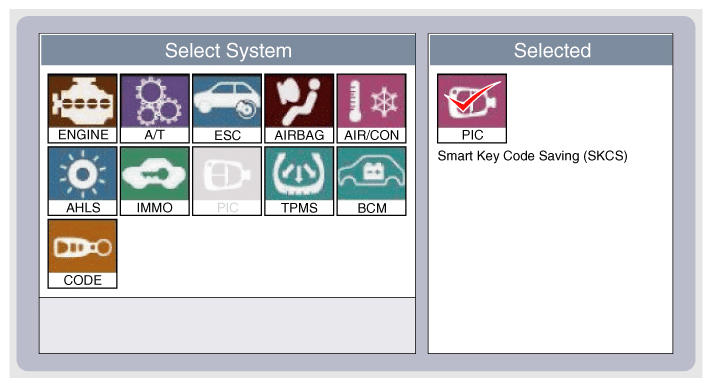

Select the vehicle model and then do "Smart key code saving".

Fig 2: Display - Smart Key Code Saving Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Display - Smart Key Code Saving Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

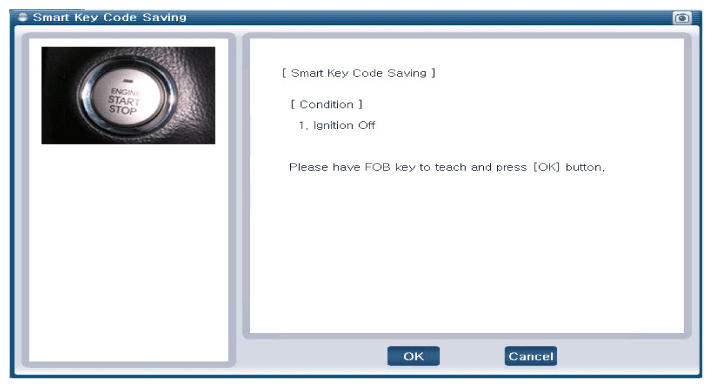

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown in illustration as below.

Fig 4: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.

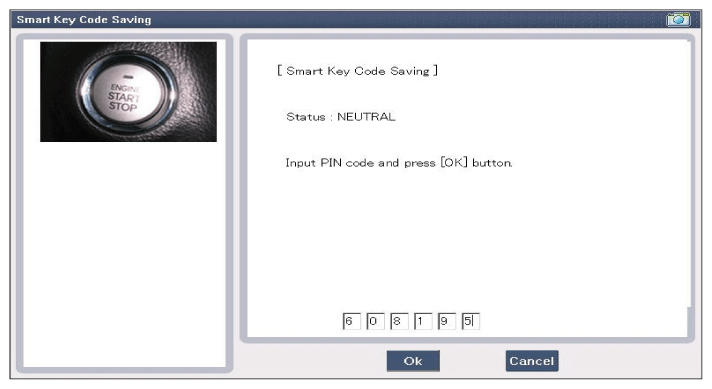

Input the "Pin code" for first key teaching.

Fig 5: Display - Smart Key Code Saving Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

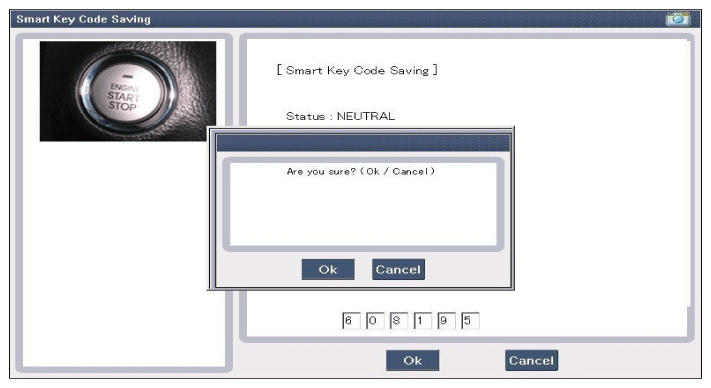

Fig 6: Display - Smart Key Code Saving Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

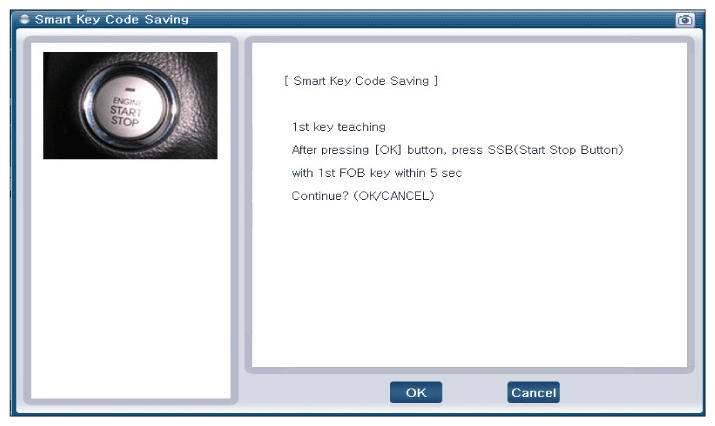

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Display - Smart Key 1 Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 8: Display - Smart Key First Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Display - Smart Key 1 Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA

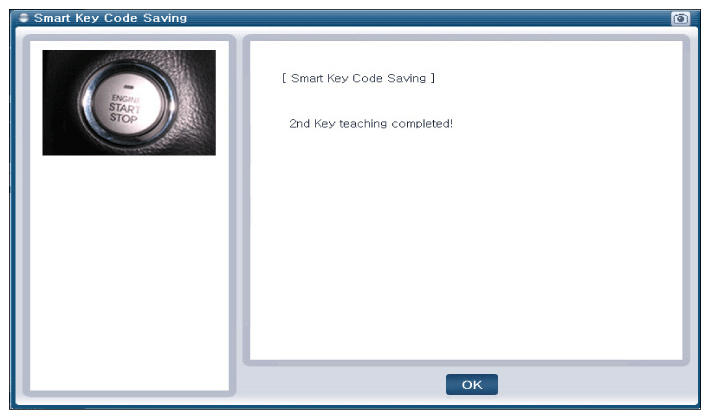

Confirm the message "Second key teaching completed".

Fig 10: Display - Smart Key 2 Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA

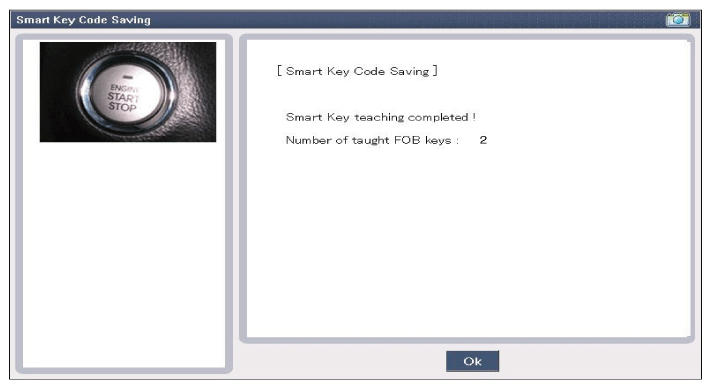

Then the screen will be shown in illustration as below when key teaching process is completed.

Fig 11: Display - Smart Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
