Components and Components Location: Components

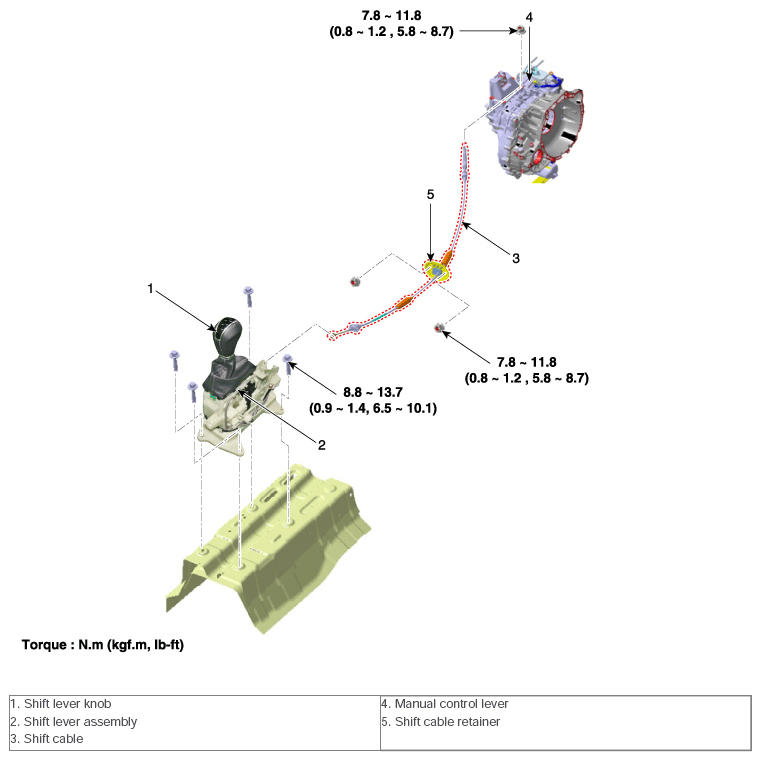

Fig 1: Shift Cable Related Components Location With Torque Specification
G10631799Courtesy of HYUNDAI MOTOR AMERICA
