Components and Components Location: Components

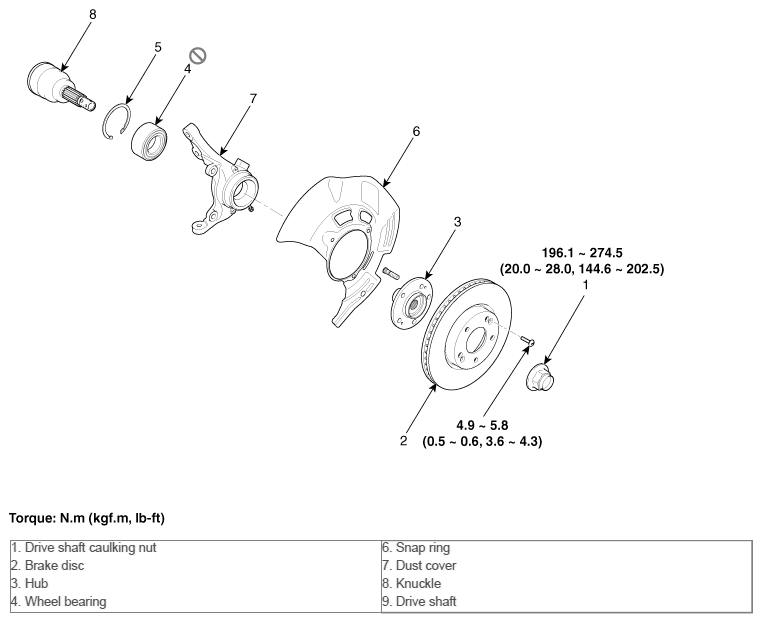

Fig 1: Front Hub Knuckle Replacement Components With Torque Specifications
G10604747Courtesy of HYUNDAI MOTOR AMERICA
