Repair Procedures: Installation

WARNING: This page is about a different car, the 2016 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Fix the Brake Pedal Arm and fully insert the Stop Lamp Switch as hiding contact part.

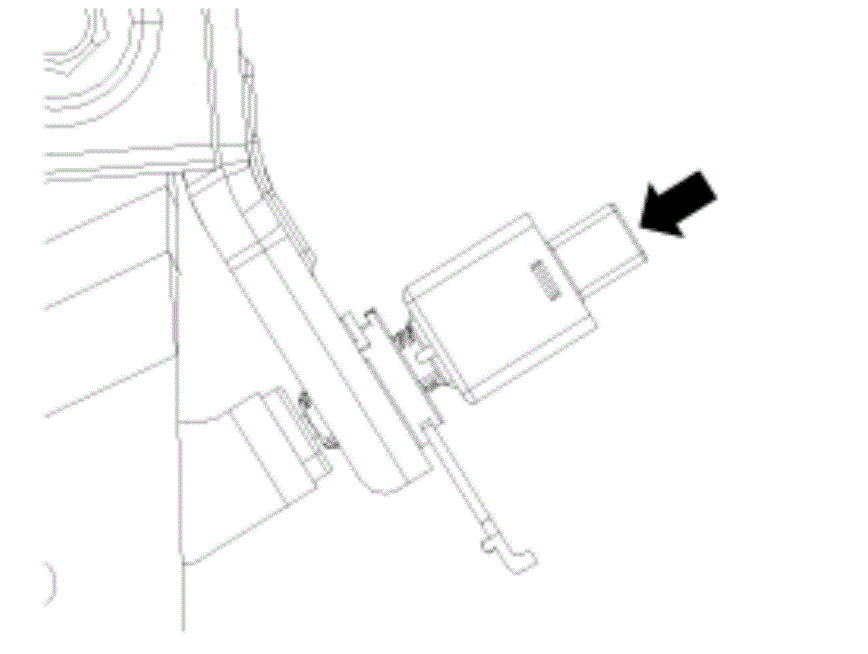

Fig 1: Stop Lamp Switch Location
Courtesy of HYUNDAI MOTOR AMERICA
After inserting, Turn The Stop Switch (A) 45° clockwise and assemble the Locking Plate (B) by pushing.

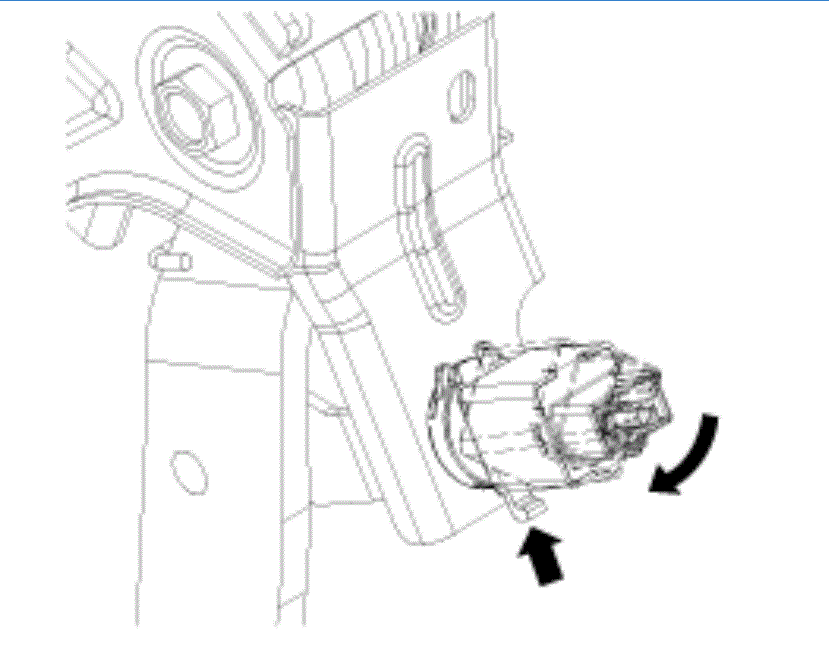

Fig 2: Turning Stop Switch Clockwise
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the Gap between Stop Lamp Switch and Bracket.
Stop Lamp Clearance : 1.0 ~ 2.0 mm (0.04~ 0.08 in.)

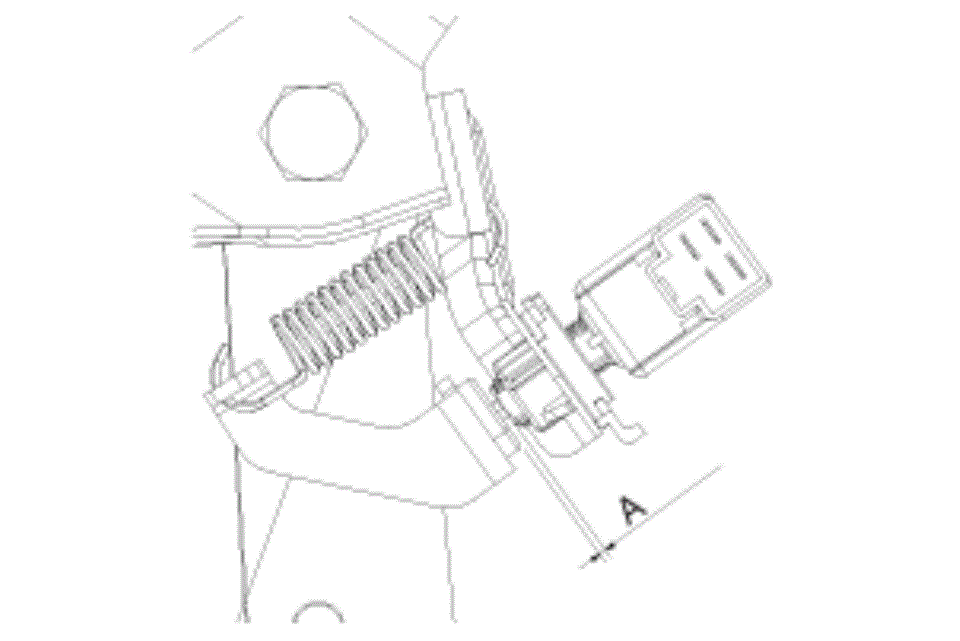

Fig 3: Gap Between Stop Lamp Switch And Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Connect the Stop Lamp Switch Connector.
NOTE: If the Gap between Stop Lamp Switch and Bracket is not 1.0 ~ 2.0mm (0.04~ 0.08in), perform the above process again.
Install the knee air bag.
(Refer to AIRBAG MODULE )
Install the Lower Crash Pad.
(Refer to: CRASH PAD ).
