Repair Procedures: Replacement: Notes

WARNING: This page is about a different car, the 2016 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the receiver first arrives for replacement:

It will be in Virgin State.
It will not be configured for any specific platform.
It will not have any sensor ID's memorized.

CAUTION: It is important to make sure that the correct receiver is used to replace the faulty part i.e. it must be Low Line in order to have the correct inflation warning thresholds set.

Disconnect vehicle battery.
Remove the glove box.
("CRASH PAD ").
Remove faulty part and fit bracket assembly to new part.

Fig 1: Bracket Assembly And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Secure new part to vehicle and fit connector.
Re-Connect Battery and turn Ignition ON.
Check that TREAD Lamp flash rate matches Virgin State indication.
After replacing the receiver, learn by using self-diagnosis device (GDS).

[Wheel Sensor ID Writing (Wireless) initialization]

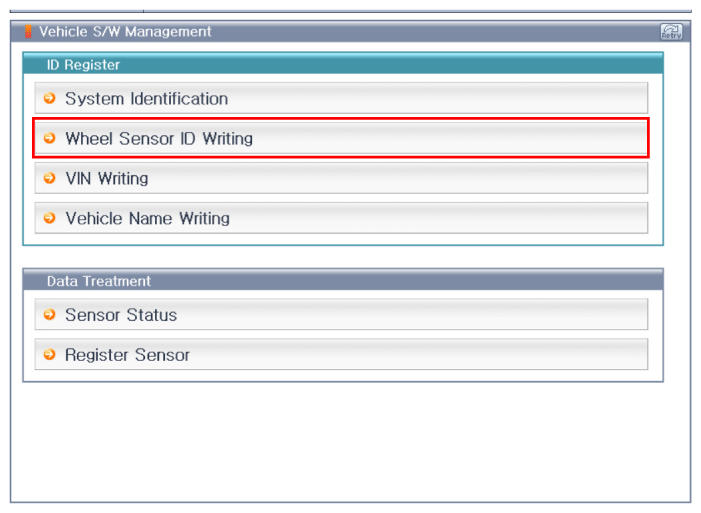

Fig 2: Wheel Sensor ID Writing (Wireless) Initialization - Screen Display (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

[Wheel Sensor ID Writing (Wireless) 1]

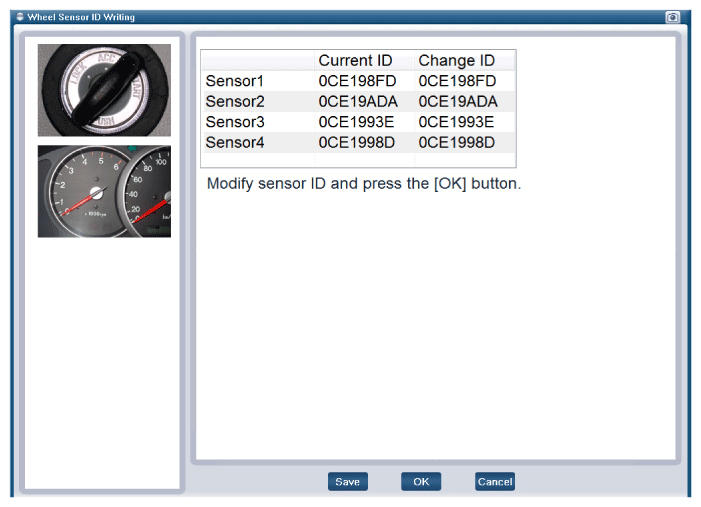

Fig 3: Wheel Sensor ID Writing (Wireless) 1 - Screen Display (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

[Wheel Sensor ID Writing (Wireless) 2]

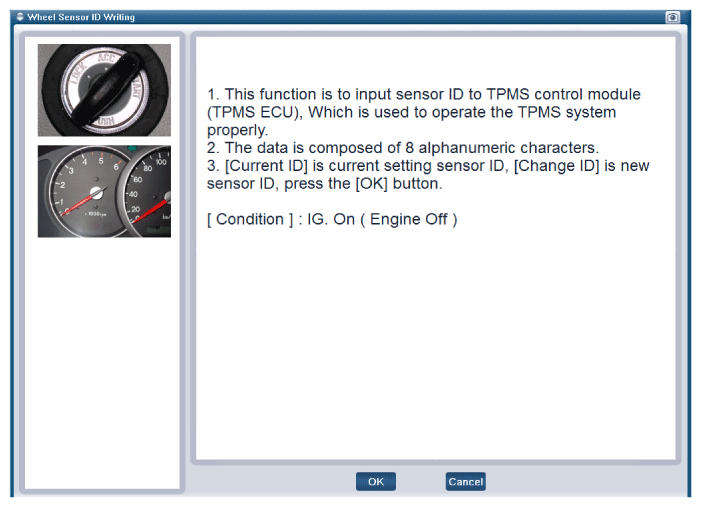

Fig 4: Wheel Sensor ID Writing (Wireless) 2 - Screen Display (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA
