Diagnosis Procedure By Using Diagnostic Device

WARNING: This page is about a different car, the 2016 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

As procedure for diagnosis methods by using diagnosis device, the main contents are as follows:

Connect Self-Diagnosis Connector (16 Pins) located in the lower of Driver Side Crash Pad to Self-Diagnosis Device and turn the Self-Diagnosis device after Key is ON.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

[Register Sensor Initialization]

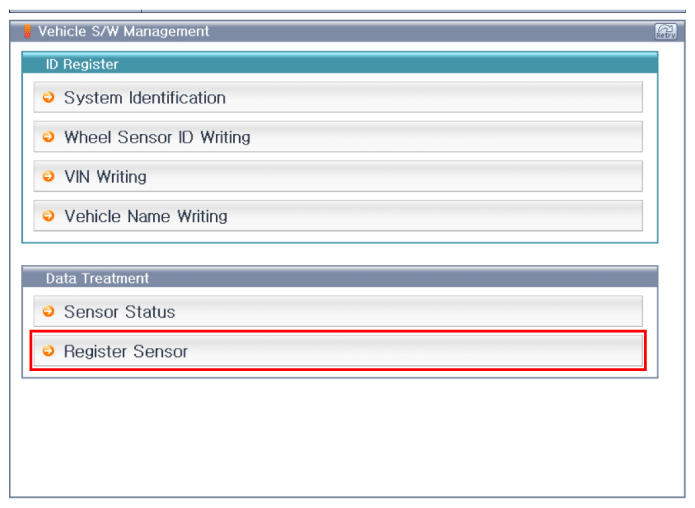

Fig 1: Register Sensor - Screen Display

G10604897

Courtesy of HYUNDAI MOTOR AMERICA

[Register Sensor Function Description]

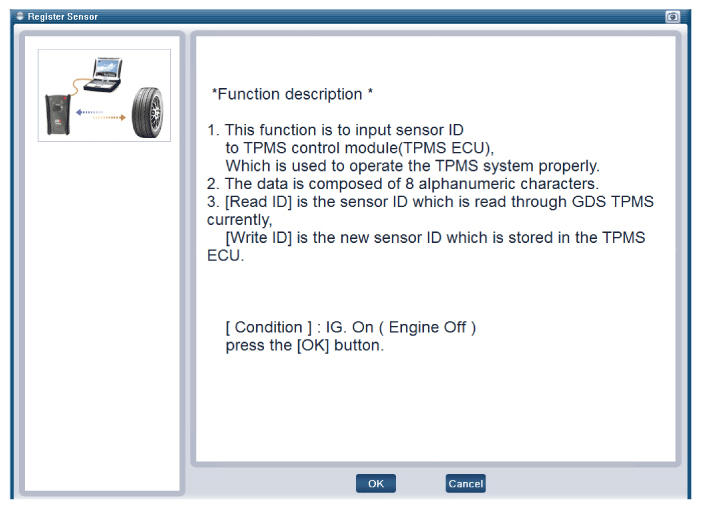

Fig 2: Register Sensor Function Description - Screen Display

G10604898

Courtesy of HYUNDAI MOTOR AMERICA

[Preparation Phase Sensor Measurements]

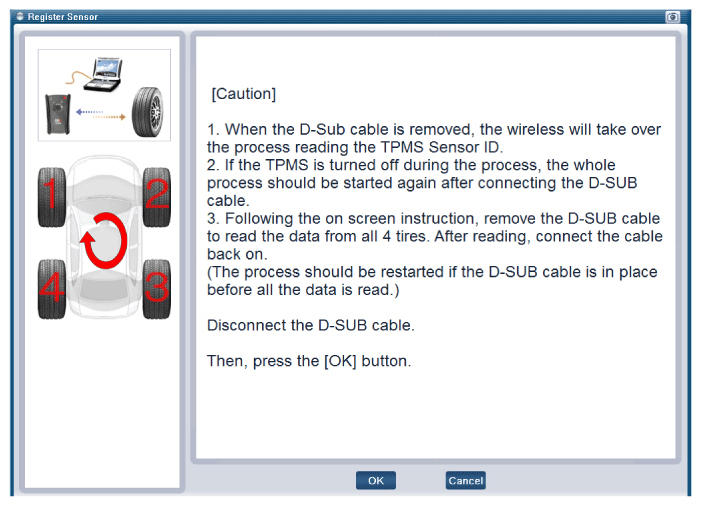

Fig 3: Preparation Phase Sensor Measurements - Screen Display

G10604899

Courtesy of HYUNDAI MOTOR AMERICA

[Sensor Register Method 1]

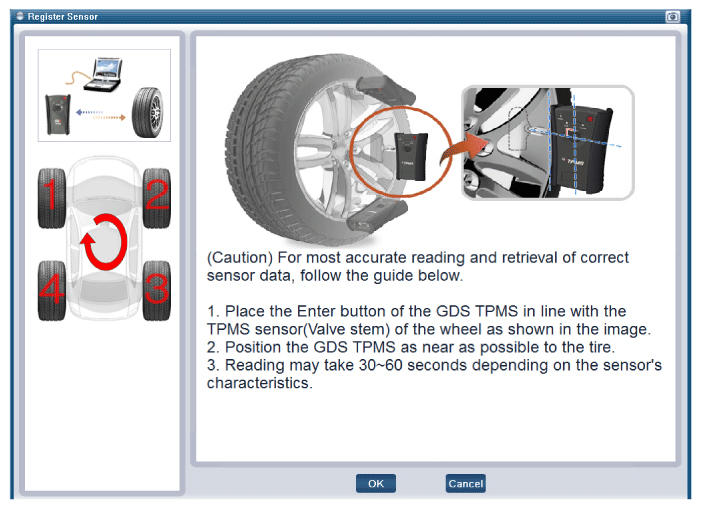

Fig 4: Sensor Register Method 1 - Screen Display (1 Of 5)

G10604900

Courtesy of HYUNDAI MOTOR AMERICA

[Sensor Register Method 2]

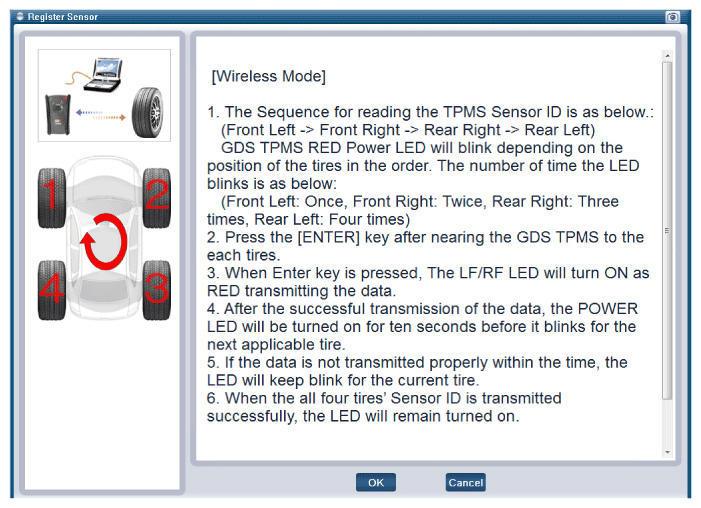

Fig 5: Sensor Register Method 2 - Screen Display (2 Of 5)

G10604901

Courtesy of HYUNDAI MOTOR AMERICA

[Sensor Register Method 3]

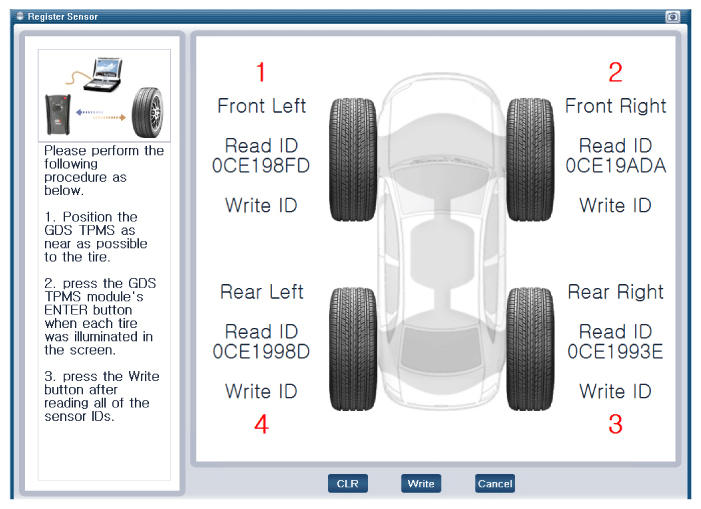

Fig 6: Sensor Register Method 3 - Screen Display (3 Of 5)

G10604902

Courtesy of HYUNDAI MOTOR AMERICA

[Sensor Register Method 4]

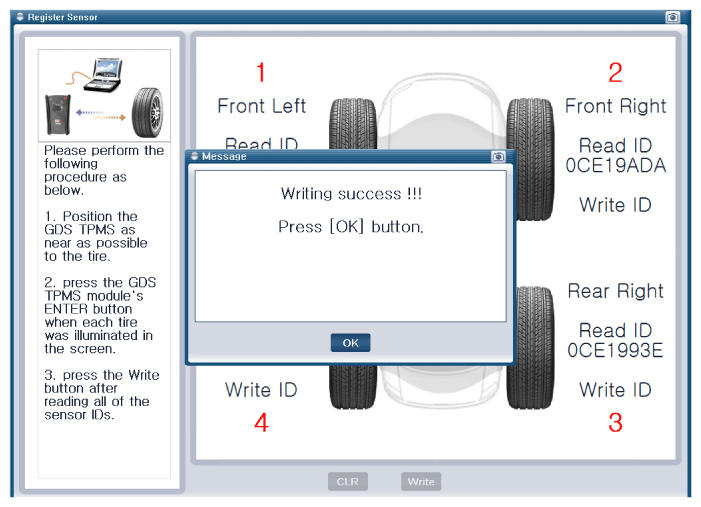

Fig 7: Sensor Register Method 4 - Screen Display (4 Of 5)

G10604903

Courtesy of HYUNDAI MOTOR AMERICA

[Sensor Register Method 5]

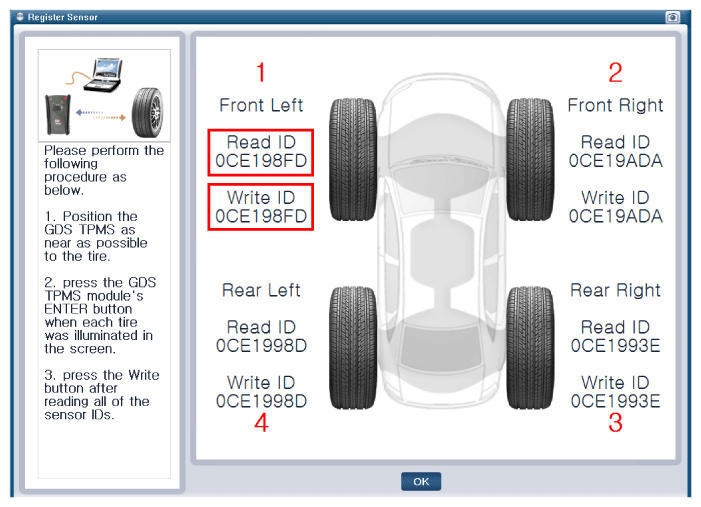

Fig 8: Sensor Register Method 5 - Screen Display (5 Of 5)

G10604904

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Write ID Read ID and be sure to check are the same.
After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.

[Sensor Status initialization]

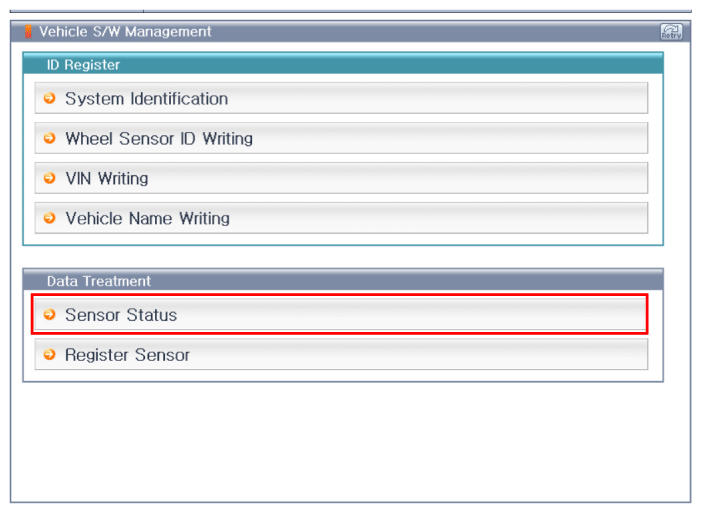

Fig 9: Sensor Status Initialization - Screen Display

G10604905

Courtesy of HYUNDAI MOTOR AMERICA

[Sensor Function Description]

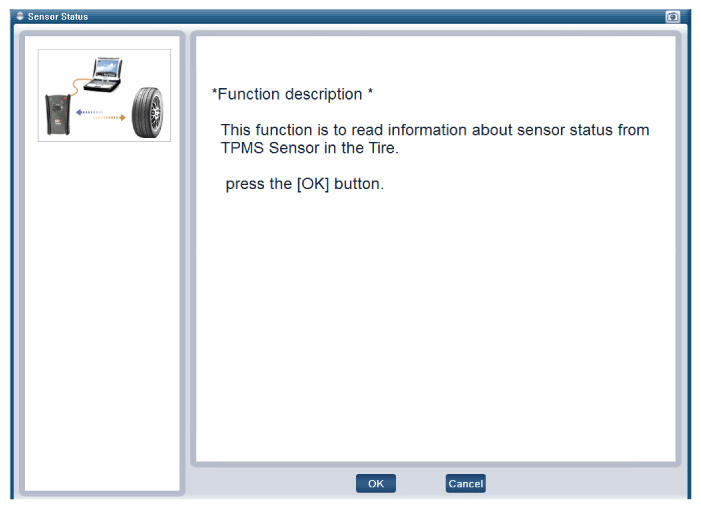

Fig 10: Sensor Function Description - Screen Display

G10604906

Courtesy of HYUNDAI MOTOR AMERICA

[Preparation Phase Sensor Measurements]

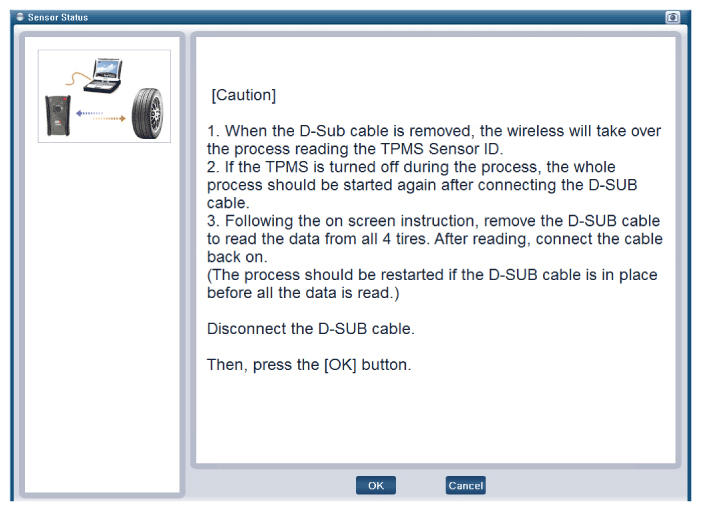

Fig 11: Preparation Phase Sensor Measurements - Screen Display

G10604907

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

In North America, the cable is measured separately.
In Domestic/General (European) area, the cable is measured without separation.

[Sensor Measurements 1]

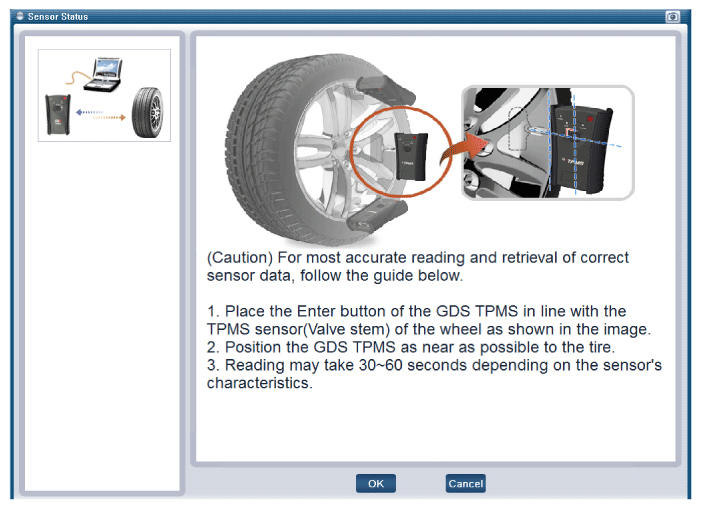

Fig 12: Sensor Measurements 1 - Screen Display (1 Of 2)

G10604908

Courtesy of HYUNDAI MOTOR AMERICA

[Sensor Measurements 2]

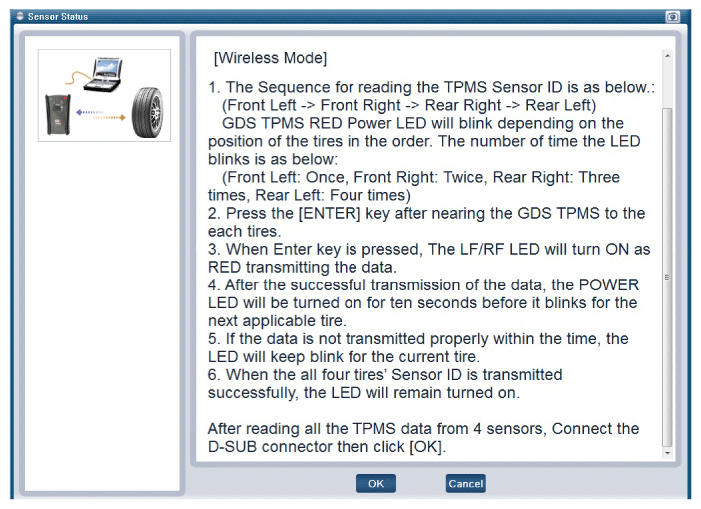

Fig 13: Sensor Measurements 2 - Screen Display (2 Of 2)

G10604909

Courtesy of HYUNDAI MOTOR AMERICA

[Sensor Status]

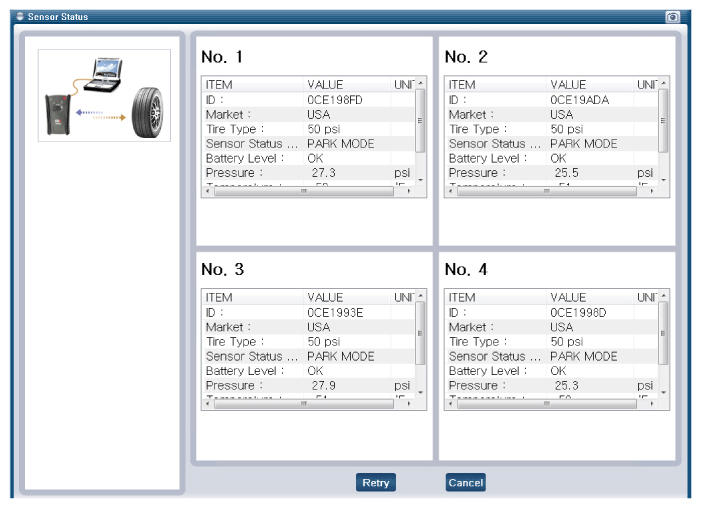

Fig 14: Sensor Status - Screen Display

G10604910

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Each entry must check whether each sensor normal.
After replacing the tires or sensors, check the status of sensor is working properly after sensor registration process.
