Components and Components Location: Components

WARNING: This page is about a different car, the 2016 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

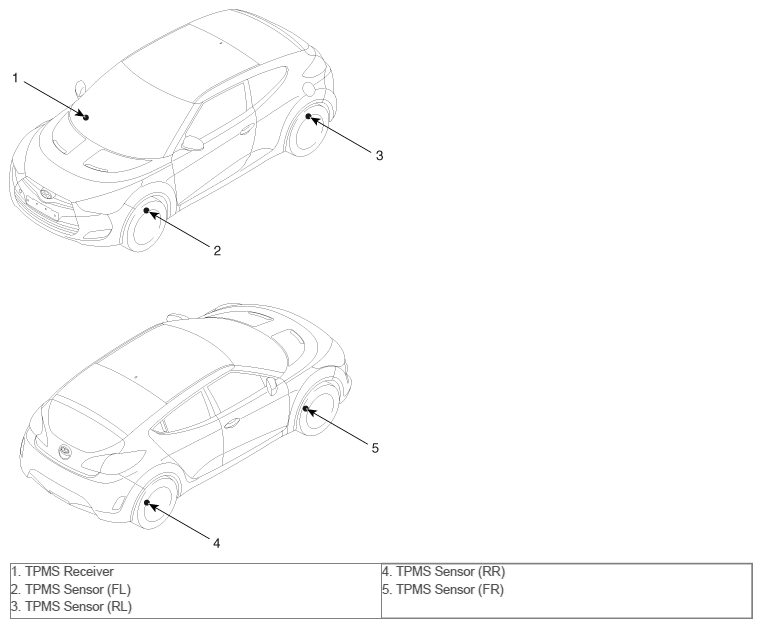

Fig 1: Tire Pressure Monitoring System Components Location

Courtesy of HYUNDAI MOTOR AMERICA
