Terminal Function

WARNING: This page is about a different car, the 2016 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

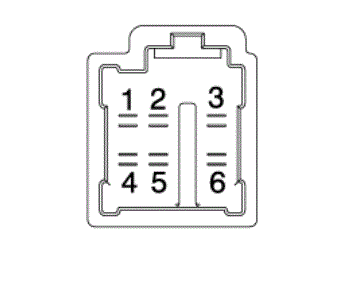

Fig 1: Tire Pressure Monitoring System Connector Pins
G00570574Courtesy of HYUNDAI MOTOR AMERICA
Pin No. Function
1 Battery (+)
2 IGN
3 CAN Low
4 CAN High
5 -
6 Ground
