Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

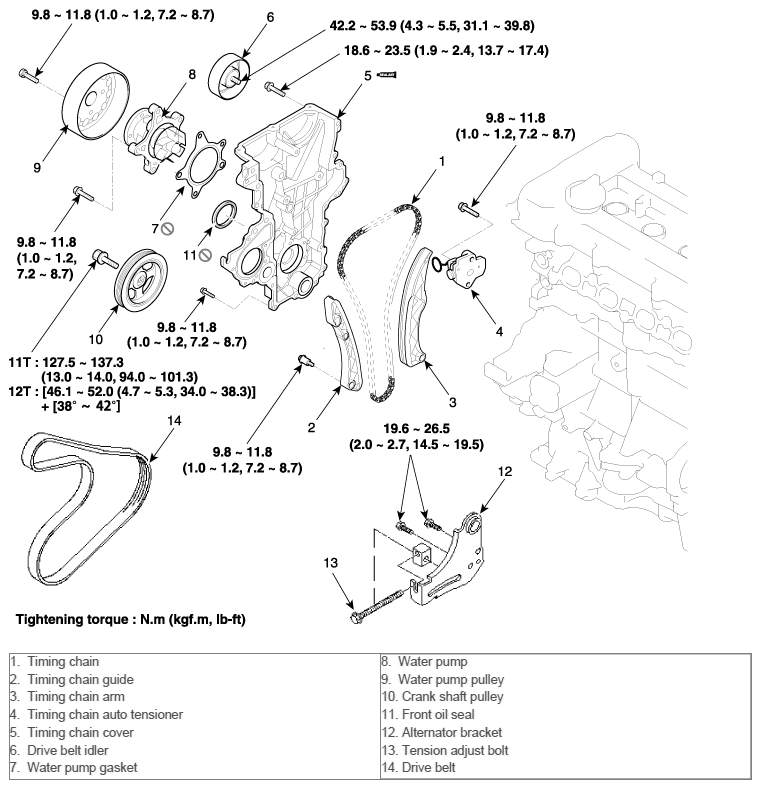

Fig 1: Exploded View Of Timing System Replacement Components

Courtesy of HYUNDAI MOTOR AMERICA
