Home › Hyundai › 2015 › Veloster RE:FLEX › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › Rear Wheel Speed Sensor › Components and Components Location › Components

Components and Components Location: Components

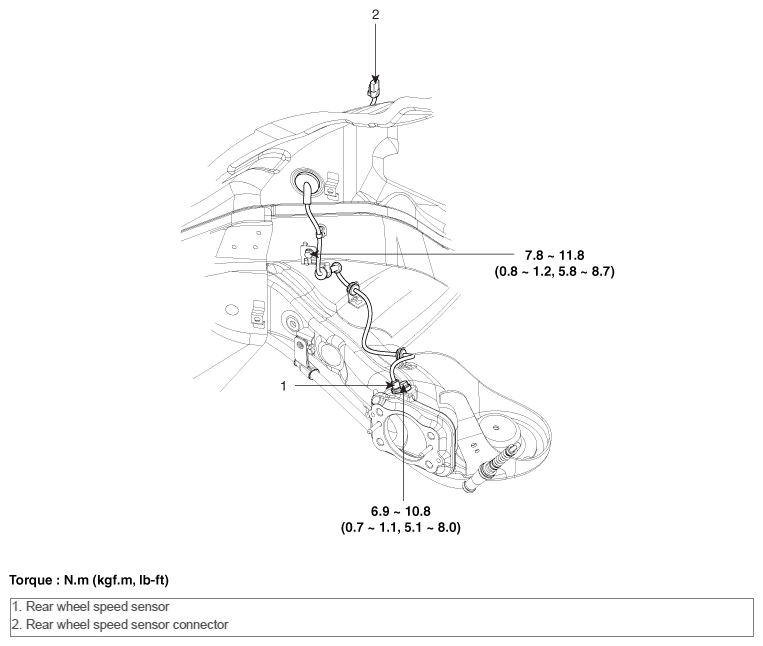

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specifications
G10605182Courtesy of HYUNDAI MOTOR AMERICA
