Starter
›
Button Engine Start System
›
Button Engine Start System
›
Schematic Diagrams
›
Circuit Diagram (1)
Circuit Diagram (1)

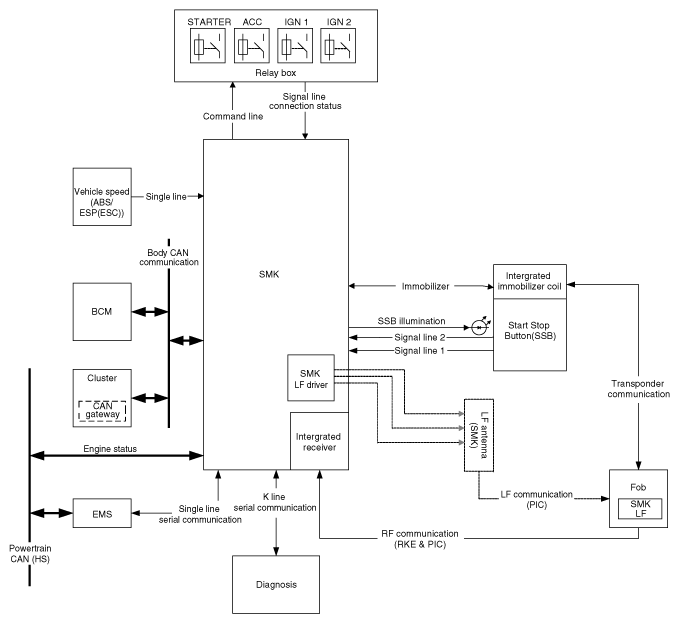

Fig 1: Button Engine Start System Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
