Circuit Diagram

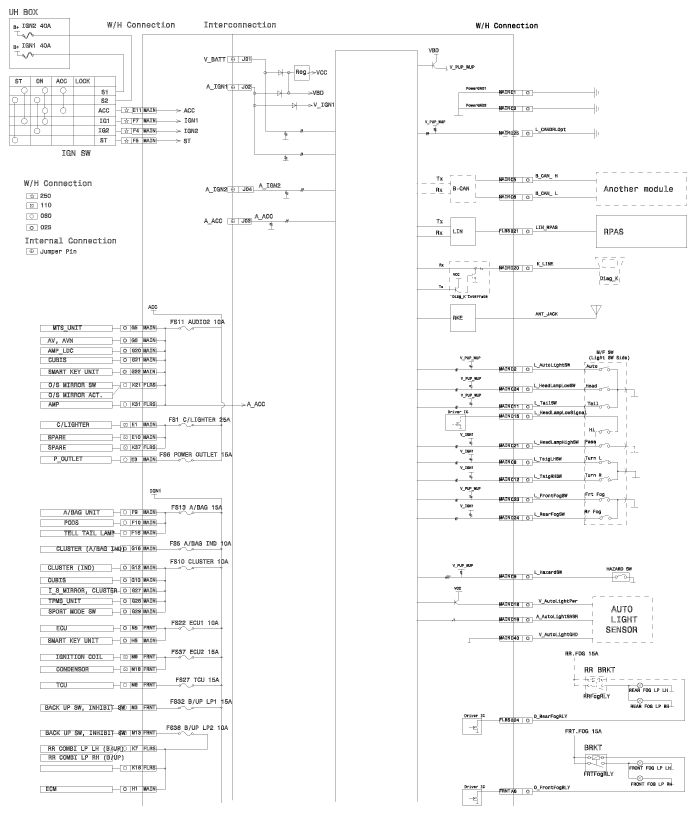

Fig 1: BCM Circuit Diagram (1 Of 4)
G10605812Courtesy of HYUNDAI MOTOR AMERICA

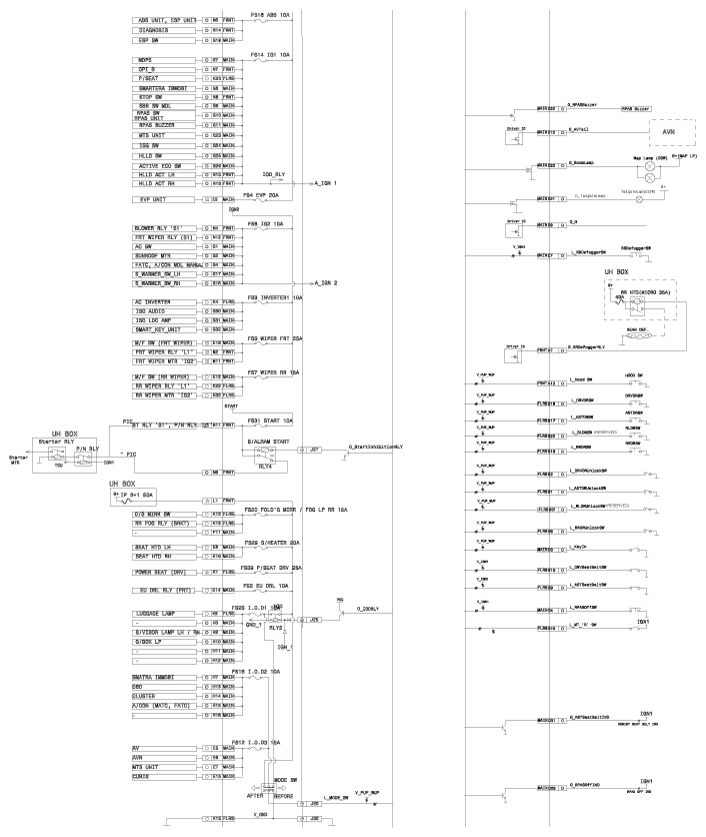

Fig 2: BCM Circuit Diagram (2 Of 4)
G10605813Courtesy of HYUNDAI MOTOR AMERICA

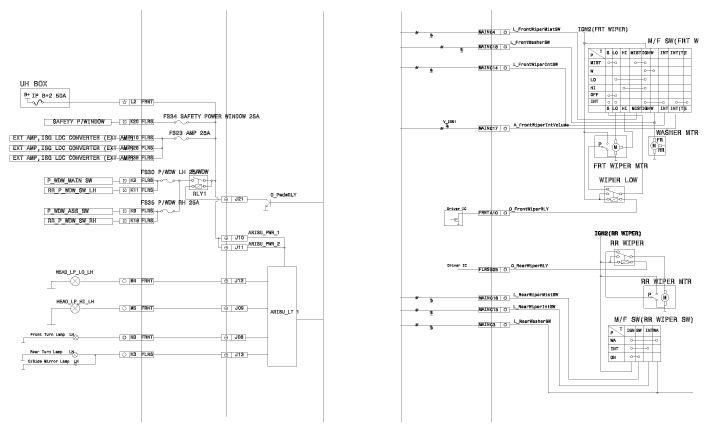

Fig 3: BCM Circuit Diagram (3 Of 4)
G10605814Courtesy of HYUNDAI MOTOR AMERICA

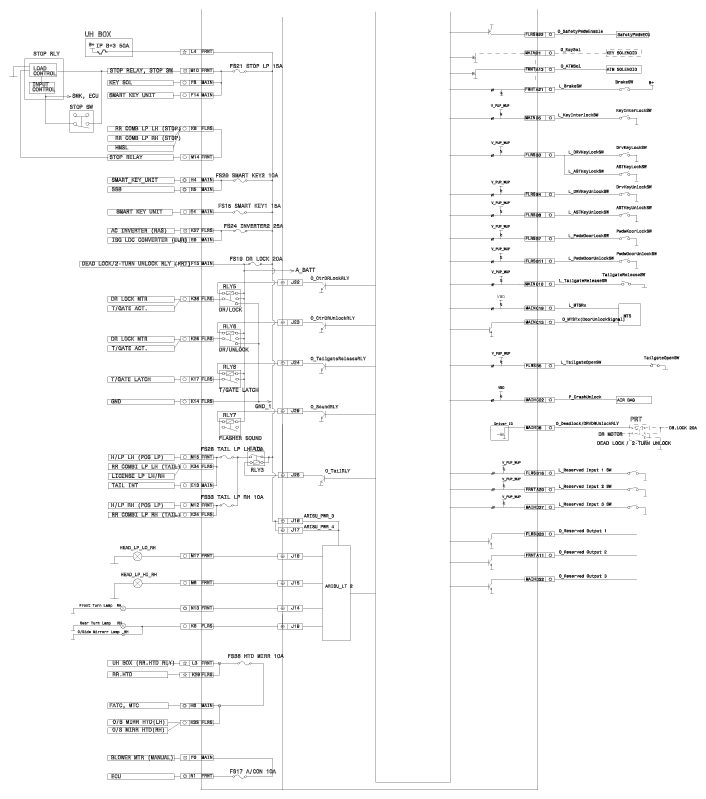

Fig 4: BCM Circuit Diagram (4 Of 4)
G10605815Courtesy of HYUNDAI MOTOR AMERICA
