Components and Components Location: Components

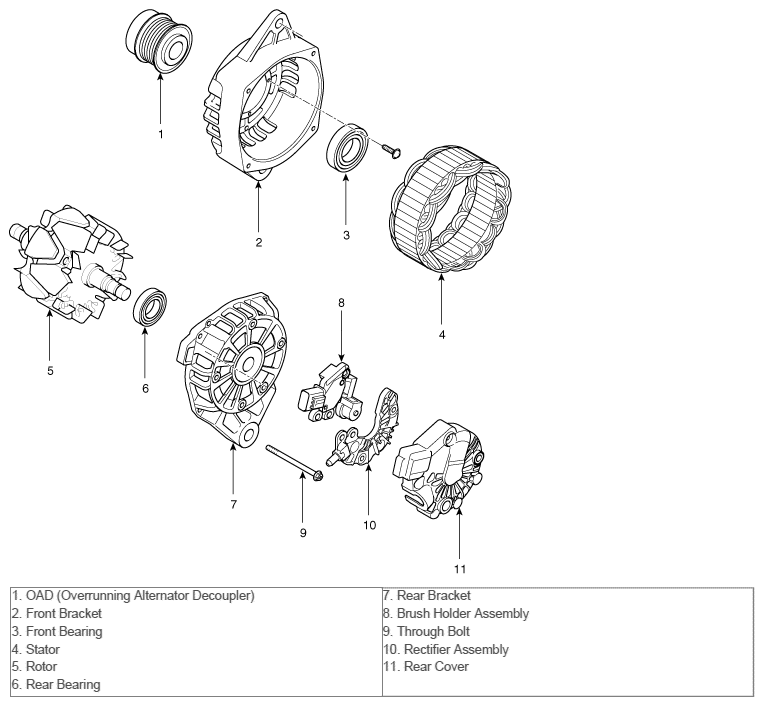

Fig 1: Alternator Replacement Components
G10604382Courtesy of HYUNDAI MOTOR AMERICA
