Home › Hyundai › 2015 › Veloster Turbo, Automatic Trans › Repair and Diagnosis › Electrical › Charging Systems › Charging System - 1.6L T-GDI › Battery › Components and Components Location › Components

Components and Components Location: Components

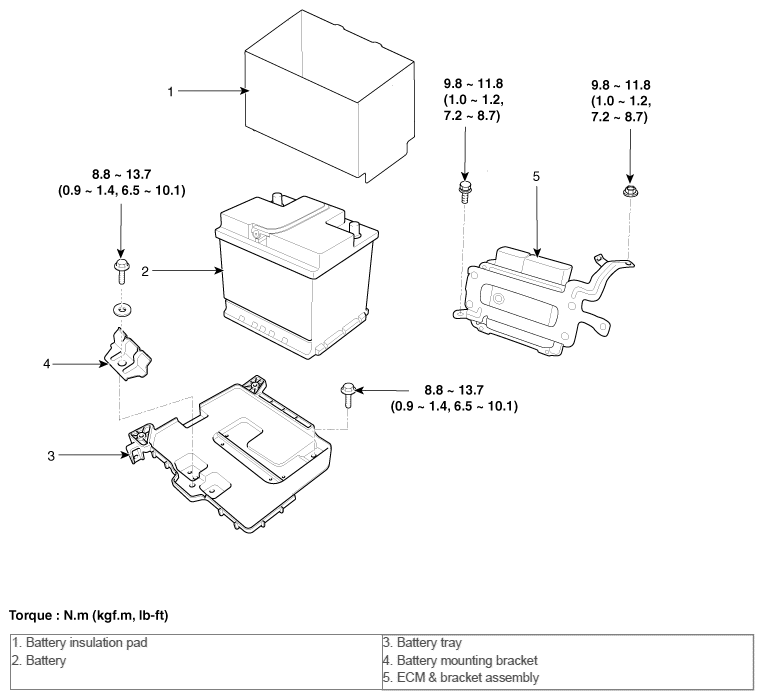

Fig 1: Battery Replacement Components With Torque Specification
G10604398Courtesy of HYUNDAI MOTOR AMERICA
